FIG. T8013-TNCQ-S20(S25)
제품 사진 · 토글 스위치 / T80-T
T80-T양산 중
T8013-TNCQ-S20(S25)
Electric fan
제품 사양
- Contact Rating
- 5A @125 VAC or 28 VDC (Q contact)
- Electrical Life
- 50,000 make and break cycles at full load
- Contact Resistance
- 10 mΩ max. initial @2-4 VDC,100 mA
- Insulation Resistance
- 1,000 MΩ min.
- Dielectric Strength
- 1,500 V RMS @ sea level.
- Operating Temperature
- -30°C to 85°C
- Configuration
- SPDT, DPDT
- Function
- On-On,On-Mom,On-Off-On,Mom-Off-Mom,
- 품번
- T8013-TNCQ-S20(S25)
주요 용도
取暖器 heater 电风扇 Electric fan 监控摄像头 Surveillance camera 冰箱 refrigerator 空调air conditioning 转向射灯 to s
최소 주문 수량(MOQ)이 적용됩니다. 맞춤 도금 및 포장은 요청 시 제공됩니다.

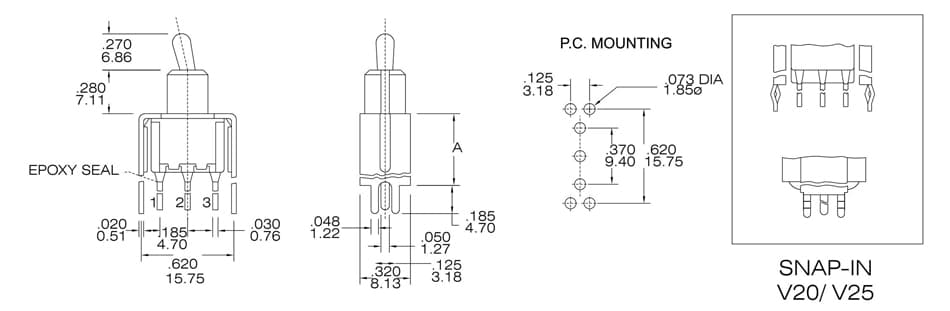

도면
DRAWING
