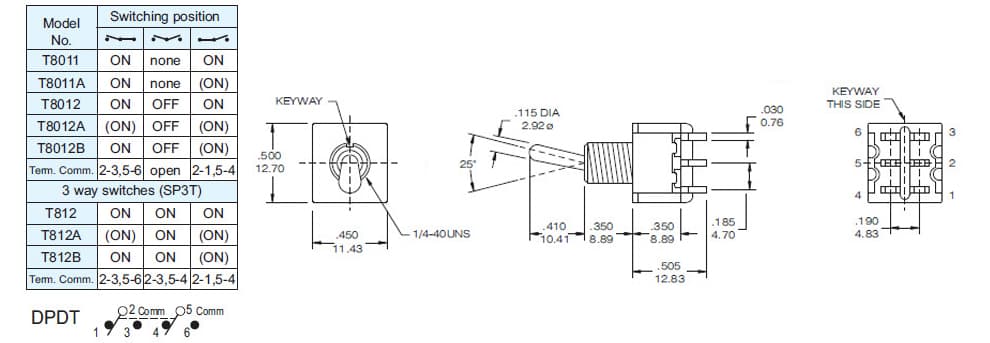

T8011-SEBQ

Electric fan

제품 사양

Contact Rating: 5A @125 VAC or 28 VDC (Q contact)
Electrical Life: 50,000 make and break cycles at full load
Contact Resistance: 10 mΩ max. initial @2-4 VDC,100 mA
Insulation Resistance: 1,000 MΩ min.
Dielectric Strength: 1,500 V RMS @ sea level.
Operating Temperature: -30°C to 85°C
CASE: diallyl phthalate ( DAP )
TOGGLE HANDLE: Copper alloy, chrome plated
BUSHING: Copper alloy, nickel plated
HOUSING: Stainless Steel
CONTACT & TERMINAL: copper alloy, silver plated
품번: T8011-SEBQ

주요 용도

取暖器 heater; 电风扇 Electric fan; 监控摄像头 Surveillance camera; 冰箱 refrigerator; 空调air conditioning; 转向射灯 to shoot the light; 洗衣机 washing machine; 饮水机等家用电器 water dispenser; 其他机械设备Other mechanical equipment

최소 주문 수량(MOQ)이 적용됩니다. 맞춤 도금 및 포장은 요청 시 제공됩니다.
