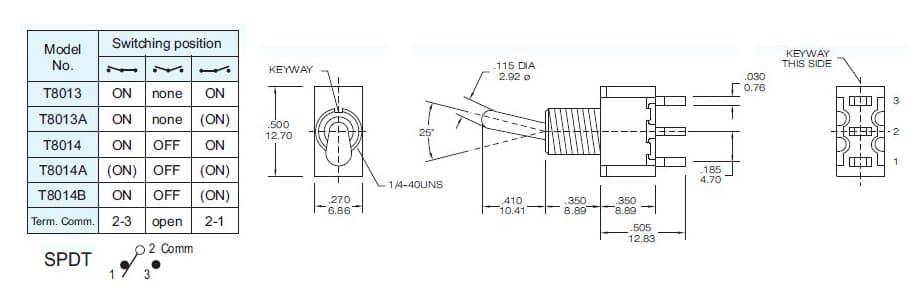

T8013-SEBQ

제품 사양

Contact Rating

5A @125 VAC or 28 VDC (Q contact)

Electrical Life

50,000 make and break cycles at full load

Contact Resistance

10 mΩ max. initial @2-4 VDC,100 mA

Insulation Resistance

1,000 MΩ min.

Dielectric Strength

1,500 V RMS @ sea level.

Operating Temperature

-30°C to 85°C

Configuration

SP,DP,3P,4P

Function

On-On,On-Mom,On-Off-On,

품번

T8013-SEBQ

주요 용도

取暖器 heater; 电风扇 Electric fan; 监控摄像头 Surveillance camera; 冰箱 refrigerator; 空调air conditioning; 转向射灯 to shoot the light; 洗衣机 washing machine; 饮水机等家用电器 water dispenser; 其他机械设备Other mechanical equipment
