FIG. TS-4-SEBQ
제품 사진 · 토글 스위치 / TS40-T
TS40-T양산 중
TS-4-SEBQ
Electric fan
제품 사양
- Contact Rating
- 3A @120 VAC or 28 VDC (Q Contact)
- Electrical Life
- 30,000 make and break cycles at full load
- Contact Resistance
- 20 mΩ max. initial @2-4 VDC,100 mA
- Insulation Resistance
- 1,000 MΩ min.
- Dielectric Strength
- 1,500 V RMS @ sea level.
- Operating Temperature
- -30°C to 85°C
- CASE
- diallyl phthalate ( DAP )
- TOGGLE HANDLE
- Copper alloy, chrome plated
- BUSHING
- Copper alloy, nickel plated
- HOUSING
- Stainless Steel
- CONTACT & TERMINAL
- Copper alloy, silver plated
- SWITCH SUPPORT
- Copper alloy, tin-plated
- 품번
- TS-4-SEBQ
주요 용도
取暖器 heater 电风扇 Electric fan 监控摄像头 Surveillance camera 冰箱 refrigerator 空调air conditioning 转向射灯 to s
최소 주문 수량(MOQ)이 적용됩니다. 맞춤 도금 및 포장은 요청 시 제공됩니다.

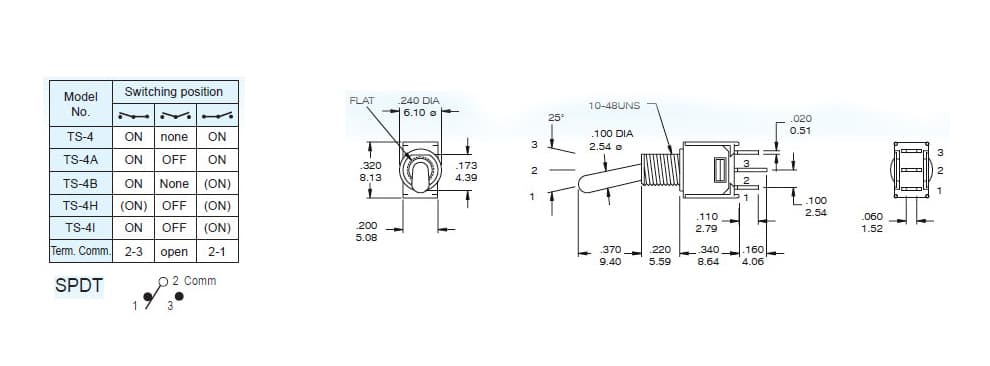

도면
DRAWING
