제품 사진 · 로커 스위치 / Sealed FNR
X7-H10F2N-LBB1-1RWC
Computer Peripherals
제품 사양
- ROCKER SWITCH MODEL
- X7 SERIES .
- RATING
- 16(4)A 125/250VAC ~μT 125/55
- DIELECTRIC WITHSTAND VOLTAGE
- 1500VAC 1 MINUTE
- INSUL ATION RESISTANCE
- 500VDC 100M Q (MIN)
- CONTACT RESISTANCE
- 20m Q INITIAL (MAX.)
- ILLUMINATION
- 100~125VAC
- WATERPROOF GRADE
- IP67
- 품번
- X7-H10F2N-LBB1-1RWC
주요 용도
Computer Peripherals 电脑外设; Telecommunications network 电信网络; TV Set-top box 电视机顶盒; Lamp Lighting 灯具照明; Consumer Electronics 消费类电子; Household appliances 家用电器; Car Rail Transportation 汽车轨道交通; Electronic toys 电子玩具; Power Tools Series 电动工具类; Industrial automation工业自动化
최소 주문 수량(MOQ)이 적용됩니다. 맞춤 도금 및 포장은 요청 시 제공됩니다.
도면
DRAWING

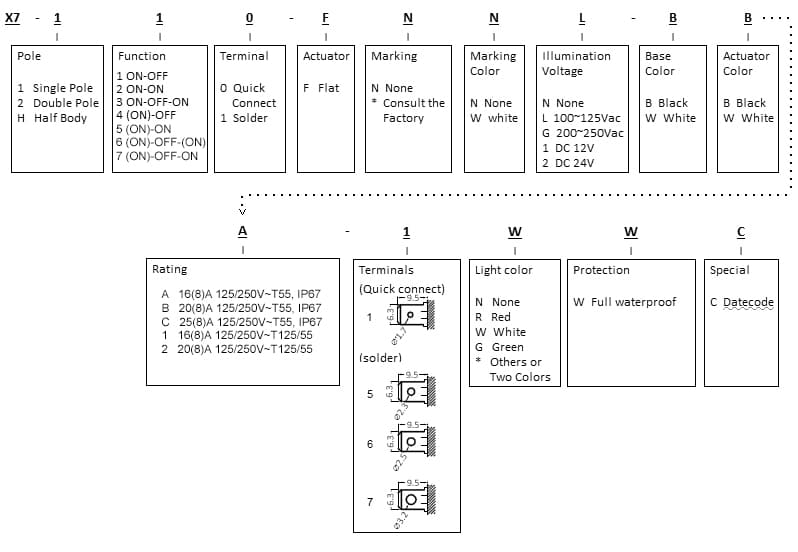

주문 코드 체계
ORDER CODING
