제품 사진 · 로커 스위치 / Sealed FNR
FNR-13-MR-B-P
True ON-ON-ON triple-throw switch optionsON-ON-ONSwitch contacts sealed to IP68S. With the optionalIP68STested up to 1 million cycles 100Maintained or momentary action, single o…
제품 사양
- Rating
- 2A 30VDC;
- Degree of protction
- IP67;
- Contact Resistance
- 50mΩ Max;
- Dielectric Strength
- 1000VAC For 1 minute；
- Operating Force
- 600±200gf；
- Mechanical Life
- 1,000,000 cycles；
- 품번
- FNR-13-MR-B-P
주요 용도
True ON-ON-ON triple-throw switch options真正的实现ON-ON-ON三档开关功能Switch contacts sealed to IP68S. With the optional开关防水达IP68S级别。Tested up to 1 million cycles 开关寿命达100万次Maintained or momentary action, single or double pole Logic level only开关可以做到单极与双极逻辑控制Standard and large rocker style sizes开关柄可以定制Mining vehicle 应用于矿用车辆Large agricultural machinery大型农业机械Aerial work vehicle 高空作业车辆
최소 주문 수량(MOQ)이 적용됩니다. 맞춤 도금 및 포장은 요청 시 제공됩니다.

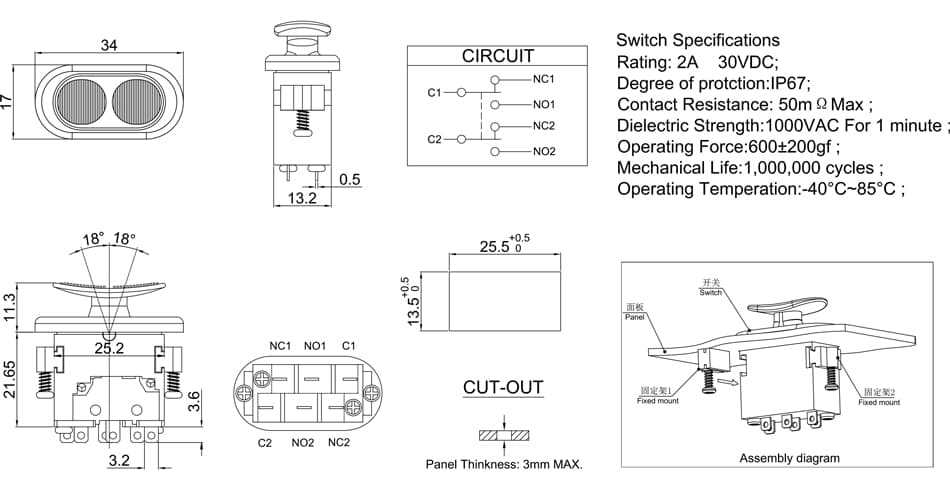

도면
DRAWING

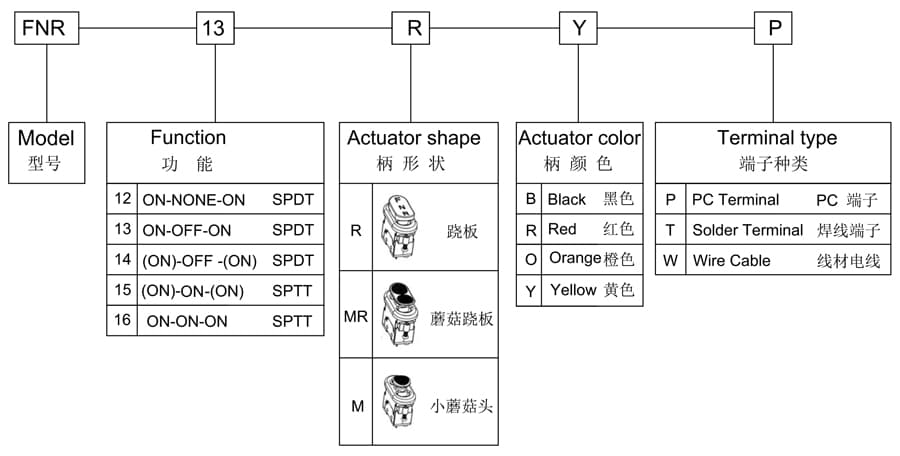

주문 코드 체계
ORDER CODING
