X6-2706-A3M2

Computer Peripherals

제품 사양

Specification
Contact resistance: 20m2 max. (initial)
Insulation resistance: 100MQ min. (at 500V DC)
Dielectric strength: 1 ,500V AC 50/60 Hz for 1 minute
Service life: Mechanically: 100,000 operations min.
Electrically: 30,000 operations min.
Rating: 15 A 12 Vdc or 125 Vac
Function: .(ON)OFF一(ON)_DPDT
품번: X6-2706-A3M2

주요 용도

Computer Peripherals 电脑外设; Telecommunications network 电信网络; TV Set-top box 电视机顶盒; Lamp Lighting 灯具照明; Consumer Electronics 消费类电子; Household appliances 家用电器; Car Rail Transportation 汽车轨道交通; Electronic toys 电子玩具; Power Tools Series 电动工具类; Industrial automation工业自动化

최소 주문 수량(MOQ)이 적용됩니다. 맞춤 도금 및 포장은 요청 시 제공됩니다.

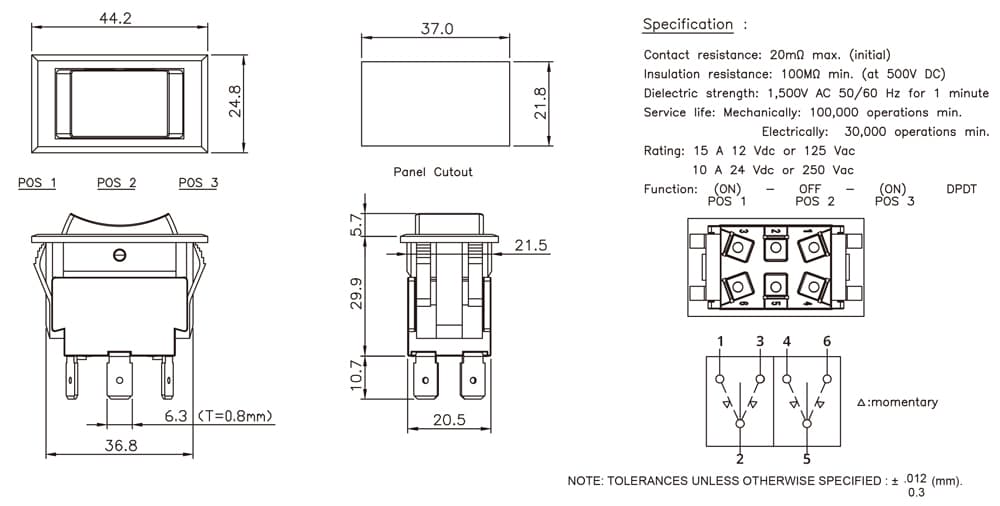

도면

DRAWING

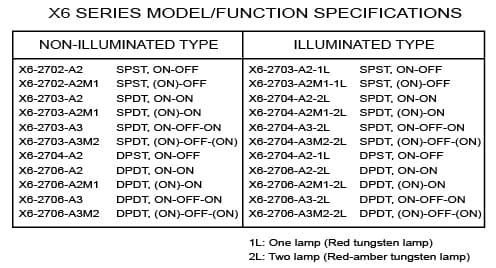

주문 코드 체계

ORDER CODING
