제품 사진 · 로커 스위치 / Sealed FNR
X5-264E4W-1ABD-7F
Computer Peripherals
제품 사양
- Electrical life
- 6,000 cycles(cURus), 10,000 cycles
- Dielectric strength
- 1,500 VAC for 1 minute
- Initial contact resistance
- 20m Ohms max.
- Insulation resistance
- 100M Ohms min, at 500VDC
- 품번
- X5-264E4W-1ABD-7F
주요 용도
Computer Peripherals 电脑外设; Telecommunications network 电信网络; TV Set-top box 电视机顶盒; Lamp Lighting 灯具照明; Consumer Electronics 消费类电子; Household appliances 家用电器; Car Rail Transportation 汽车轨道交通; Electronic toys 电子玩具; Power Tools Series 电动工具类; Industrial automation工业自动化
최소 주문 수량(MOQ)이 적용됩니다. 맞춤 도금 및 포장은 요청 시 제공됩니다.

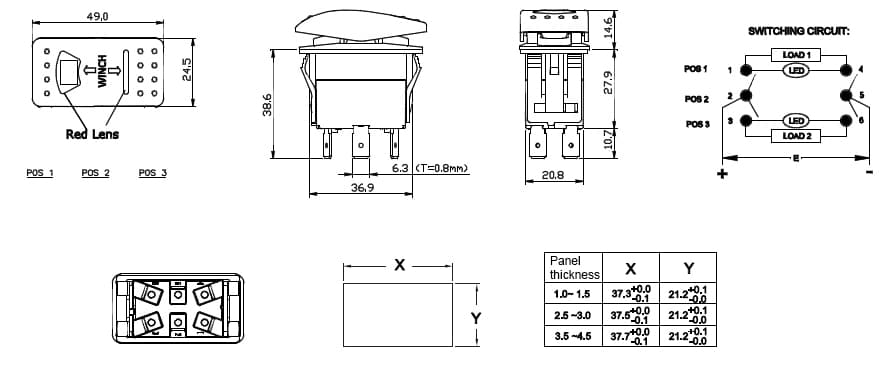

도면
DRAWING

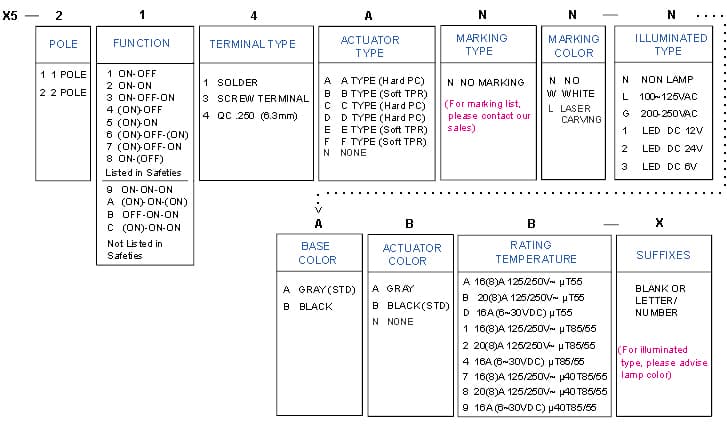

주문 코드 체계
ORDER CODING
