제품 사진 · 로커 스위치 / Sealed FNR
FNR-16R-Y-W
True ON-ON-ON triple-throw switch options
제품 사양
- Electrical Ratings
- 10mA @ 5VDC max. Logic Level
- Electrical Life
- 1,000,000 cycles
- Max Power
- 0.5 VA
- Voltage
- 20-32VDC
- Current
- 1-50mA
- DWV
- 250 Vrms
- Mechanical Life
- 1 .000,000 cycles
- Switch Contact Seal
- IP68S
- Temperature Range
- -40°C to +85°C
- Wire
- 26 AWG UL 11028 Wire
- 품번
- FNR-16R-Y-W
주요 용도
True ON-ON-ON triple-throw switch options 真正的实现ON-ON-ON三档开关功能 Switch contacts sealed to IP68S. With the optional开关防水达IP68S级别。 Tested up to 1 million cycles 开关寿命达100万次 Maintained or momentary action, single or double pole Logic level only 开关可以做到单极与双极逻辑控制 Standard and large rocker style sizes 开关柄可以定制 Mining vehicle 应用于矿用车辆 Large agricultural machinery大型农业机械 Aerial work vehicle 高空作业车辆
최소 주문 수량(MOQ)이 적용됩니다. 맞춤 도금 및 포장은 요청 시 제공됩니다.

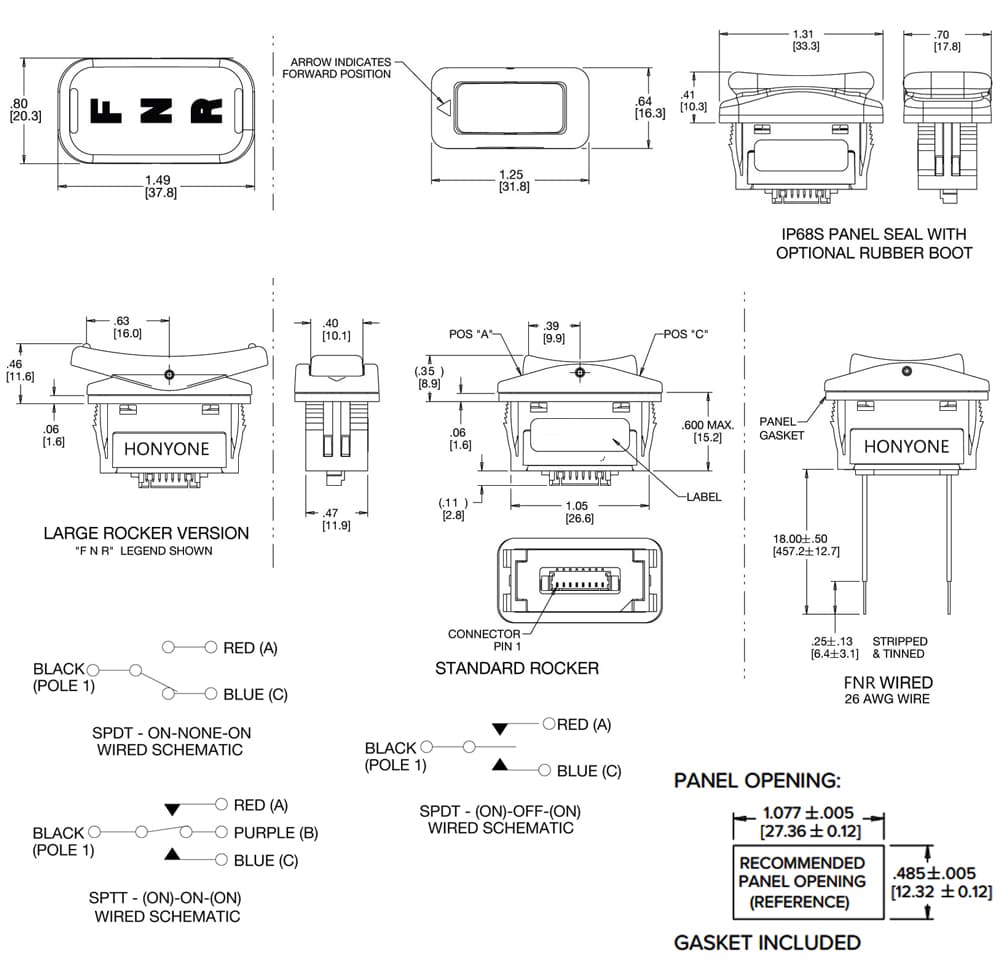

도면
DRAWING
주문 코드 체계
ORDER CODING
