FIG. PSM19-13M-P-RG6-S0
제품 사진 · 메탈 푸시 버튼 스위치 / PSM 16A
PSM 16A양산 중
PSM19-13M-P-RG6-S0
• Outdoor Controls ·
제품 사양
- Rating
- 16A 250VAC ; .16A 125VAC ;
- Degree of protction
- IP65;
- Contact Resistance
- 50mΩ Max. ;
- Dielectric Strength
- 1 500VAC For 1 minute ;
- Total Travel
- 3 5±0.5mm ;
- Operating Force
- 300±100gf ;
- Mechanical Life
- 50,000 cycles ;
- Load Life
- 10,000 cycles ;
- Operating Temperation
- -20°C~70°C ;
- Function
- OFF-ON
- 품번
- PSM19-13M-P-RG6-S0
주요 용도
• Outdoor Controls ·户外控制; • Security Equipment ·安全设备; • Medical Equipment ·医疗设备; • Food Processing Equipment ·食品加工设备; • Military Equipment ·军用设备; • Industrial Machinery ·工业机械; • Transportation: Mass-Transit, Lift Trucks; •运输: 大众运输, 起重卡车
최소 주문 수량(MOQ)이 적용됩니다. 맞춤 도금 및 포장은 요청 시 제공됩니다.

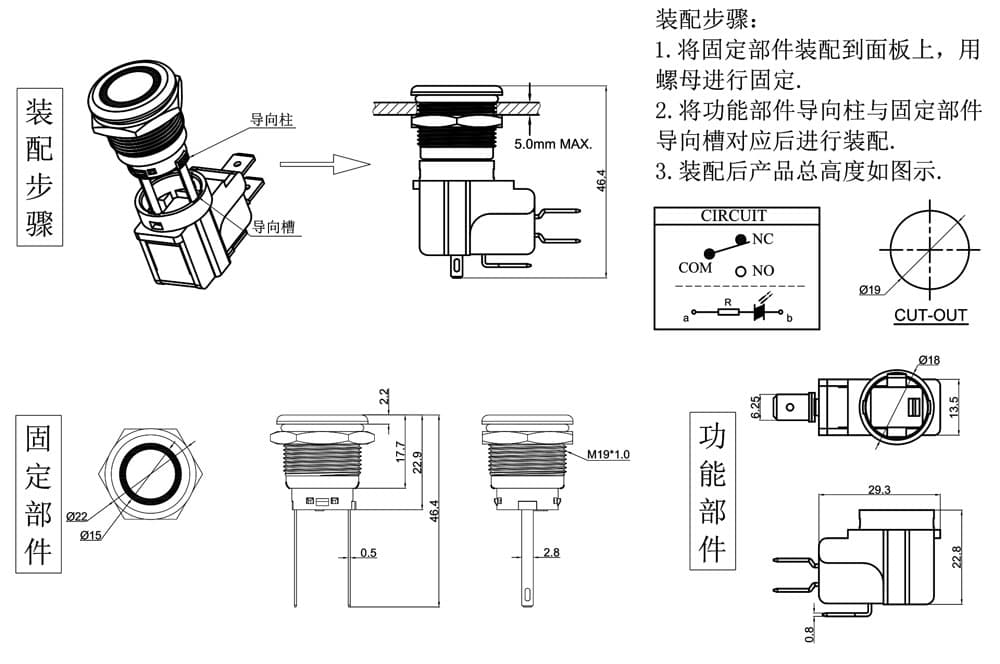

도면
DRAWING
주문 코드 체계
ORDER CODING
