PSM-12M-FS-RU3-SN-A

• Outdoor Controls ·

제품 사양

Rating: 5A/10A/16A 125VAC ;5A/10A16A 250VAC ;
Contact Resistance: 50mΩ Max. ;
Insulation Resistance: DC 500V 100MΩ Min. ;
Dielectric Strength: AC 1500V 1 minute
Total Travel: 1.0±0. 4mm
Operating Force: 500±100gf
Mechanical Life: Over 30,000 cycles
Electrical Life: Over 10,000 cycles
Operating Temperation: -25°C~85°C
Protection type: IP40(terminal side), IP67 (Panel waterproof)
Mechanical ollision protection type: IK07.

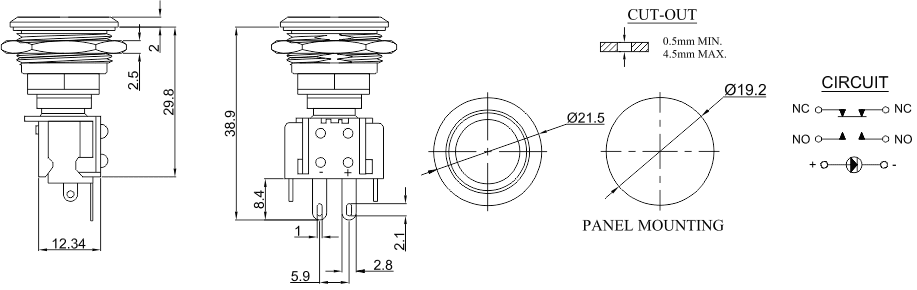

품번: PSM-12M-FS-RU3-SN-A

주요 용도

• Outdoor Controls ·户外控制; • Security Equipment ·安全设备; • Medical Equipment ·医疗设备; • Food Processing Equipment ·食品加工设备; • Military Equipment ·军用设备; • Industrial Machinery ·工业机械; • Transportation: Mass-Transit, Lift Trucks; ·运输: 大众运输, 起重卡车

최소 주문 수량(MOQ)이 적용됩니다. 맞춤 도금 및 포장은 요청 시 제공됩니다.
