FIG. ESM-19-13Z-25-N2-NN
제품 사진 · 메탈 푸시 버튼 스위치 / ESM Emergency Stop Switch
ESM Emergency Stop Switch양산 중
ESM-19-13Z-25-N2-NN
Injection molding Machine Equipment
제품 사양
- Circuit
- SPDT/DPDT
- Current rating
- 0.2A/1A/3A
- Voltage rating
- 250VAC
- Dielectric withstanding voltage
- 1000VAC for 1 minute
- Contact resistance
- 50mΩ Max.
- lnsulation resistance
- 100MΩ Min.
- Travel
- 2.8mm±0.5mm
- Operating Force
- 700±200gf
- Mechanical life
- 250,000 cycles Min
- Electric life
- 50,000 cycles Min
- Solder specifications
- 260°C for 5 seconds
- Function
- OFF-ON
- Operating temperature
- -30°C~+70°℃
- Sealing
- Back-IP65.
- 품번
- ESM-19-13Z-25-N2-NN
주요 용도
Injection molding Machine Equipment; Hardware Punch; Automation equipment; Precision Lathe CNC Equipment
최소 주문 수량(MOQ)이 적용됩니다. 맞춤 도금 및 포장은 요청 시 제공됩니다.

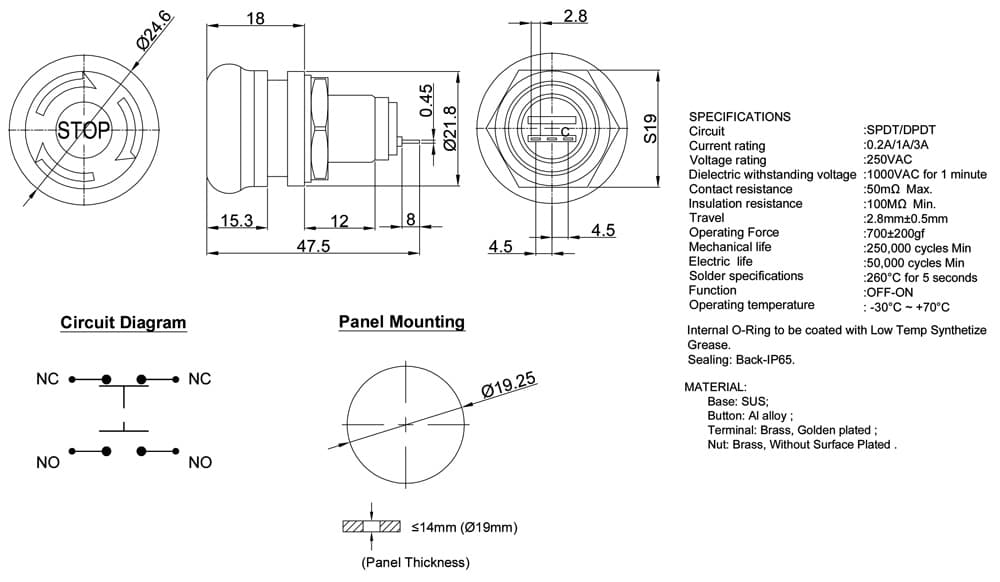

도면
DRAWING

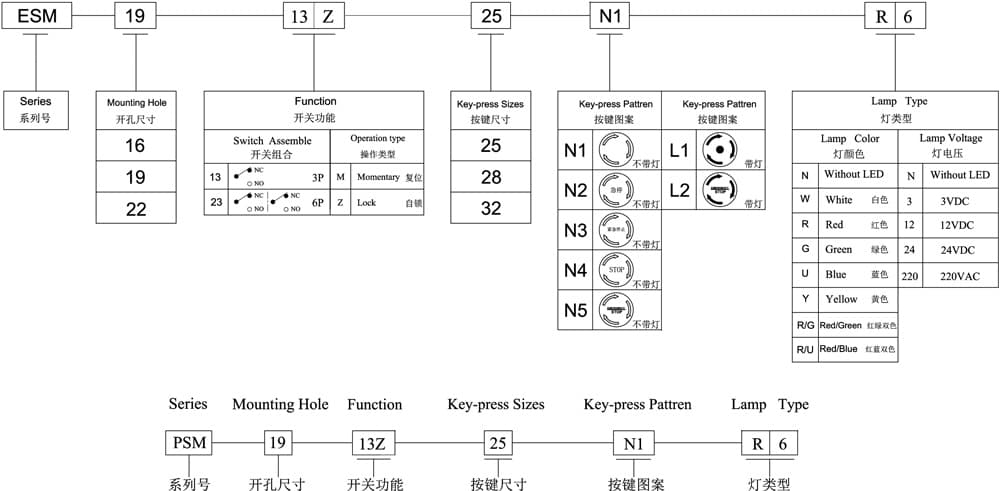

주문 코드 체계
ORDER CODING
