FIG. 小号防误盖-2
제품 사진 · 메탈 푸시 버튼 스위치 / ESM Emergency Stop Switch
ESM Emergency Stop Switch양산 중
小号防误盖-2
Injection molding Machine Equipment
제품 사양
- Electrical Grade
- 3A 250VAC
- Contact Resistance
- ≤50mJ
- Switch combination
- 1NO 1nc/2no 2NC
- Button material
- aluminum oxidation.
- Base Material
- Stainless steel
- Waterproof Grade
- IP60,
- Protection class
- 1k10
- Operating Ambient temperature
- -30℃-80℃
- Work life
- 20,000 times.
- Motion force
- approx. 3 N, rotation torque: 5-14n.m
- 품번
- 小号防误盖-2
주요 용도
Injection molding Machine Equipment; Hardware Punch; Automation equipment; Precision Lathe CNC Equipment
최소 주문 수량(MOQ)이 적용됩니다. 맞춤 도금 및 포장은 요청 시 제공됩니다.

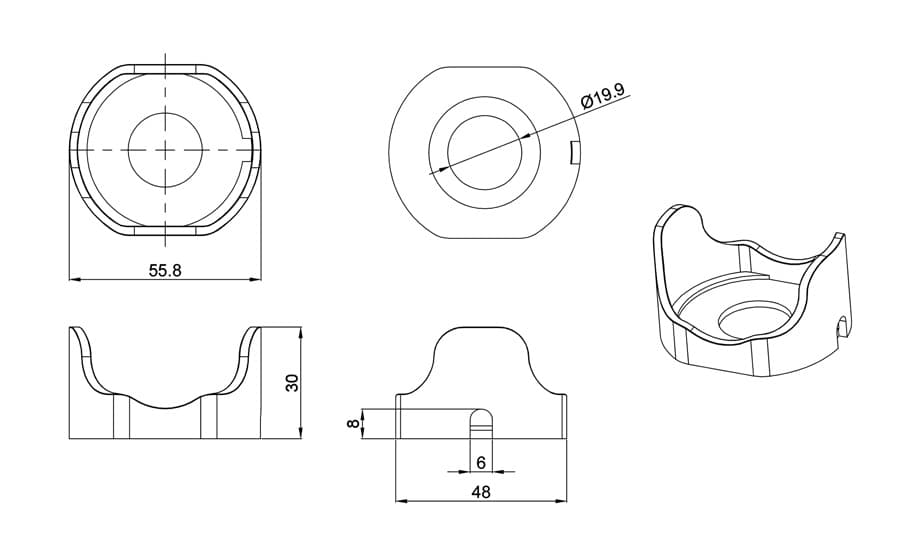

도면
DRAWING
