FIG. S-03DF-DB15-S
제품 사진 · IEC 전원 인렛 / Switch + dual fuse + filter + socket (4 in 1)
Switch + dual fuse + filter + socket (4 in 1)양산 중
S-03DF-DB15-S
Dual stage filterUltra compact design
제품 사양
- Rating
- 1A 3A 6A 10A 115/250VAC
- Insulation Resistance
- DC 500V 50MΩMin
- Dielectric Strength
- 1500VDC (Line/Line)
- Temperature rise
- <30°
- Climatic category
- 25/085/21
- Housing material
- Iron with Nickel plating
- 품번
- S-03DF-DB15-S
주요 용도
Dual stage filter，Ultra compact design Rated currents up to 10 A Dual fuse holder，2-pole rocker switch Good attenuation performance Faston or spring cage terminals Consumer goods EDP and office equipment Single-phase and switch-mode power supplies Test and measurement equipment Medical electrical devices (MD) and InVitro-Diagnostics (IVD) equipment Audio/Video, information and communicatio
최소 주문 수량(MOQ)이 적용됩니다. 맞춤 도금 및 포장은 요청 시 제공됩니다.

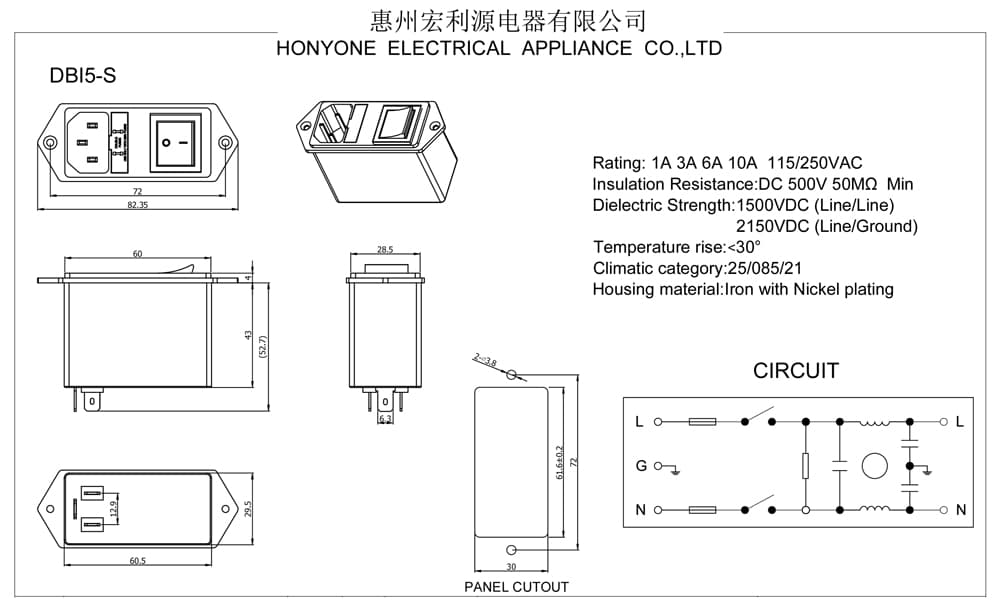

도면
DRAWING
