TSW08111

Waterproof Tact Switch

제품 사양

Funtion: Momentary action
Contact Arrangement: SPST, Normally Open
Termination: THD version
품번: TSW08111

상세 표 1

ELECTRICAL RATING	50mA , DC12V
CONTACT RESISTANCE	≤50mΩ	≤100mΩ
INSULATION RESISTANCE	≥100MΩ
DIELECTRIC STRENGTH	AC250V for 1 Minute
LIFE EXPECTANCY	100,000 cycles
TRAVEL	0.25mm±0.1mm
IP GRADE	IP67

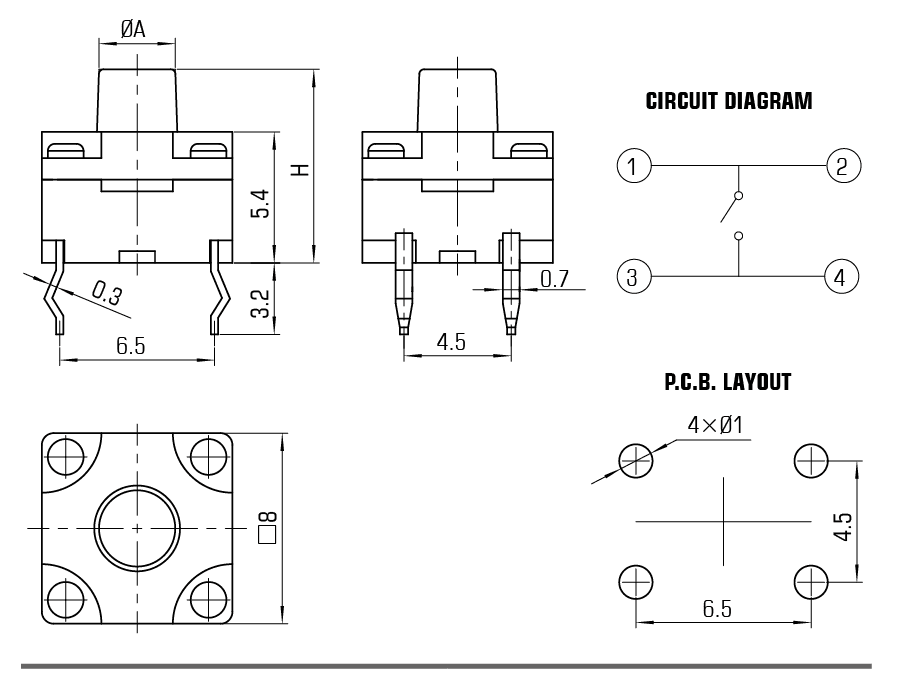

상세 표 2

H	6	6.3	6.5	7	7.5	7.9	8	8.1	8.5	8.8	9	9.5	10	10.3	10.5
A	3.4	3.4	3.5	3.2	3.2	3	3.2	3.1	3.2	3.2	3.2	3.2	3.2	3.1	3.1
H	11	11.2	11.4	11.5	11.8	12	12.5	13	13.5	14	14.5	15	15.5	16
A	3.1	3.1	3.2	3.2	3.2	3	3.1	3.2	3.2	3.1	3.2	3	3.2	3.1

주요 용도

Industrial control industry; Household appliances industry; Security equipment industry; Office equipment industry; Computer, Communication, and Consumer electronics industry; Medical equipment industry

최소 주문 수량(MOQ)이 적용됩니다. 맞춤 도금 및 포장은 요청 시 제공됩니다.
