FIG. TSW06122
제품 사진 · 방수 택트 스위치 / 6*6
6*6양산 중
TSW06122
Waterproof Tact Switch
제품 사양
- Funtion
- Momentary action
- Contact Arrangement
- SPST,Normally Open
- Termination
- THD version
- Contact Rating
- 50mA DC12V
- Dielectric Strength
- AC250V for 1 Minute
- Contact Resistance
- ≤100 mΩ Max.
- Insulation Resistance
- 100MΩ Min.
- Life Expectancy
- 100,000 cycles
- Travel
- 0.3mm ± 0.1mm
- IP GRADE
- IP67
- 품번
- TSW06122
상세 표
| H | 4.3 | 4.5 | 5 | 5.5 | 6 | 6.5 | 7 | 7.5 | 8 | 8.5 | 9 | 9.5 | 10 | 10.5 |
| H | 11 | 11.5 | 12 | 12.5 | 13 | 13.5 | 14 | 14.5 | 15 | 15.5 | 16 | 16.5 | 17 |
주요 용도
Industrial control industry; Household appliances industry; Security equipment industry; Office equipment industry; Computer, Communication, and Consumer electronics industry; Medical equipment industry
최소 주문 수량(MOQ)이 적용됩니다. 맞춤 도금 및 포장은 요청 시 제공됩니다.

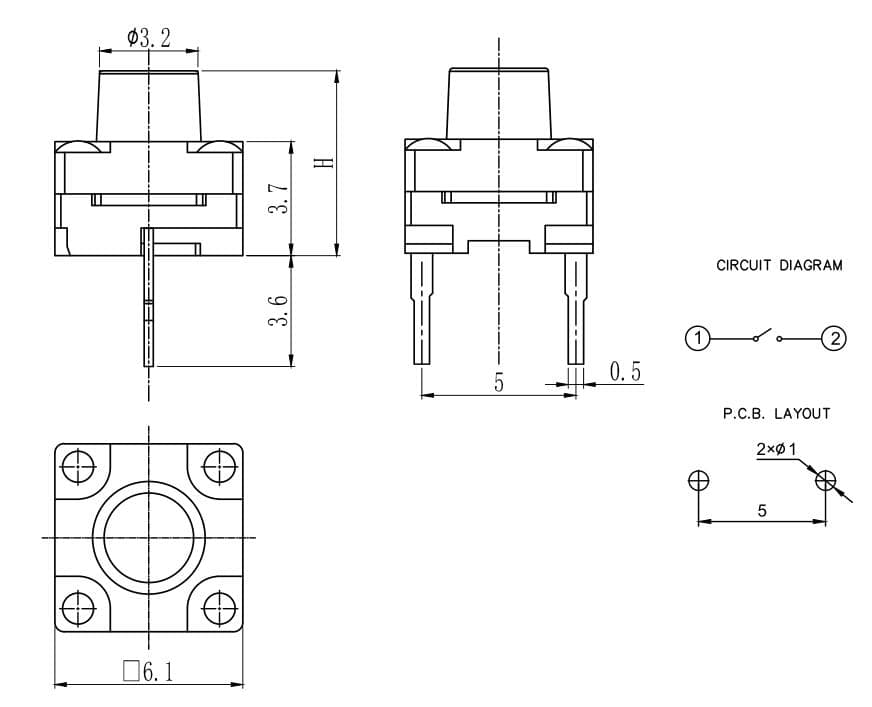

도면
DRAWING
