FIG. TSW06112-0030
제품 사진 · 방수 택트 스위치 / 6*6
6*6별도문의
TSW06112-0030
Waterproof Tact Switch
제품 사양
- Funtion
- Momentary action
- Contact Arrangement
- SPST, Normally Open
- Termination
- THD version
- ELECTRICAL RATING
- 50mA , DC12V
- CONTACT RESISTANCE
- ≤100mΩ
- INSULATION RESISTANCE
- ≥100MΩ
- DIELECTRIC STRENGTH
- AC250V for 1 Minute
- LIFE EXPECTANCY
- 100,000 cycles
- TRAVEL
- 0.25mm±0.1mm
- IP GRADE
- IP67
- 품번
- TSW06112-0030
상세 표
| H | 9 | 9.5 | 9.8 | 10 | 10.5 | 10.7 | 10.9 | 11 | 11.3 | 11.5 | 12 | 12.5 | 13 | 13.5 | 14 |
| H | 14.5 | 15 | 15.5 | 16 | 16.5 | 16.6 | 17 | 17.5 | 18 | 18 | 18.5 | 19 | 19.5 | 20 | 20.5 |
| H | 20.7 | 21.2 | 22 | 23 | 24 | 24.5 | 25.5 | 25.8 | 26 | 27 | 28.2 | 29 | 30 | 32 |
주요 용도
Industrial control industry; Household appliances industry; Security equipment industry; Office equipment industry; Computer, Communication, and Consumer electronics industry; Medical equipment industry
최소 주문 수량(MOQ)이 적용됩니다. 맞춤 도금 및 포장은 요청 시 제공됩니다.

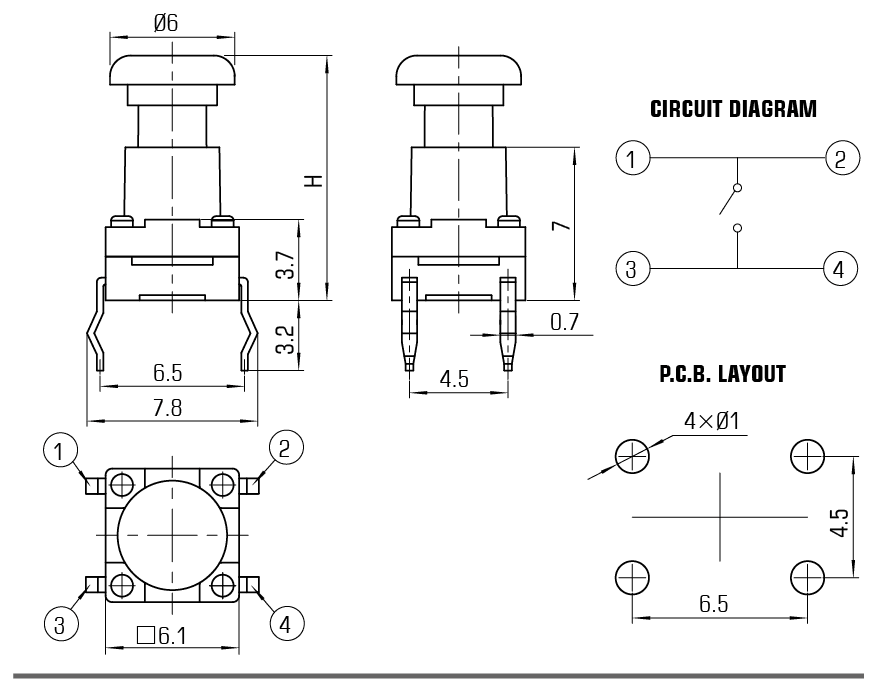

도면
DRAWING
