FIG. TSX12350
제품 사진 · 방수 택트 스위치 / 12*12
12*12양산 중
TSX12350
12x12 IP67 SMD Waterproof Tactile Switch With Stainless Steel Cover
제품 사양
- Funtion
- Momentary action
- Contact Arrangement
- SPST,Normally Open
- Termination
- SMD version
- Contact Rating
- 50mA DC12V
- Dielectric Strength
- AC250V for 1 Minute
- Contact Resistance
- ≤100 mΩ Max.
- Insulation Resistance
- 100MΩ Min.
- Life Expectancy
- 100,000 cycles
- Travel
- 0.35mm ± 0.1mm
- IP GRADE
- IP67
- 품번
- TSX12350
상세 표 1
| H | 8.5 | 8.8 | 8.9 | 8.9 |
| L | 5.7 | 6 | 6.1 | 6.1 |
상세 표 2
| H | 8.5 | 8.8 | 8.9 | 10.5 |
| L | 5.7 | 6 | 6.1 | 7.7 |
주요 용도
Industrial control industry; Household appliances industry; Security equipment industry; Office equipment industry; Computer, Communication, and Consumer electronics industry; Medical equipment industry
최소 주문 수량(MOQ)이 적용됩니다. 맞춤 도금 및 포장은 요청 시 제공됩니다.

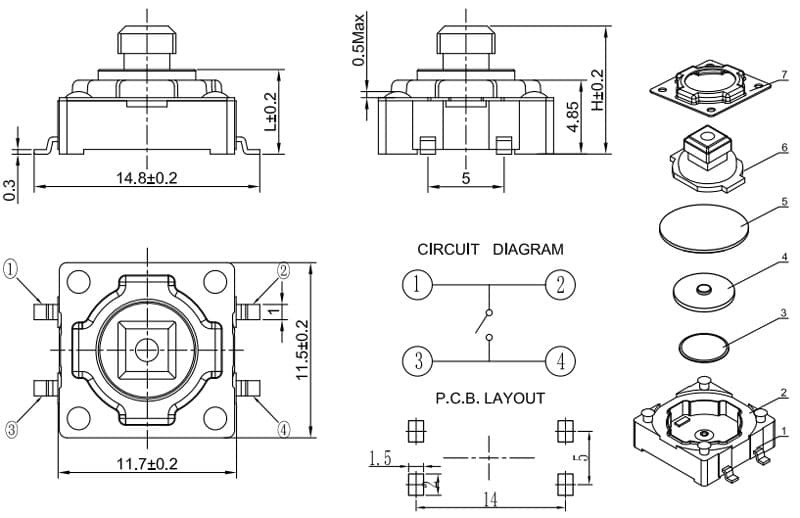

도면
DRAWING
