FIG. TSW10112-0080
제품 사진 · 방수 택트 스위치 / 10*10
10*10양산 중
TSW10112-0080
Waterproof Tact Switch
제품 사양
- Funtion
- Momentary action
- Contact Arrangement
- SPST, Normally Open
- Termination
- THD version
- Contact Rating
- 50mA DC12V
- Dielectric Strength
- AC250V for 1 Minute
- Contact Resistance
- ≤100 mΩ Max.
- Insulation Resistance
- 100MΩ Min.
- Life Expectancy
- 100,000 cycles
- Travel
- 0.35mm±0.1mm
- IP GRADE
- IP67
- 품번
- TSW10112-0080
상세 표
| H | 22.8 | 23.2 | 25 | 33.7 |
주요 용도
Industrial control industry; Household appliances industry; Security equipment industry; Office equipment industry; Computer, Communication, and Consumer electronics industry; Medical equipment industry
최소 주문 수량(MOQ)이 적용됩니다. 맞춤 도금 및 포장은 요청 시 제공됩니다.

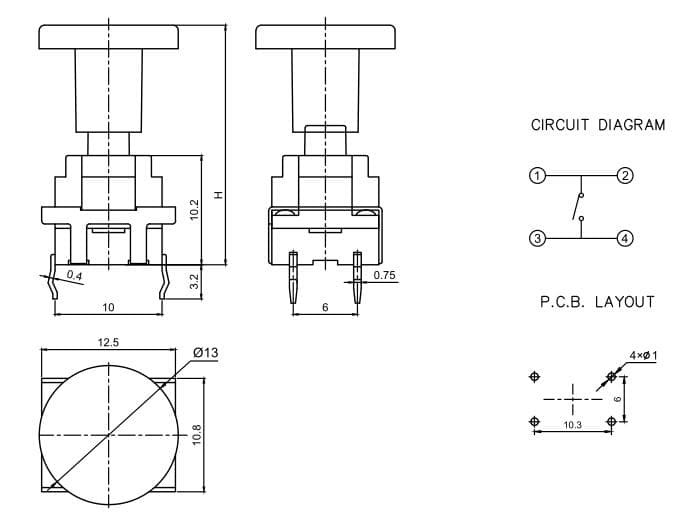

도면
DRAWING
