FIG. X6-2706-A3M2
제품 사진 · 차량용 스위치 / X5
X5양산 중
X6-2706-A3M2
Computer Peripherals
제품 사양
- Contact Resistance
- 20mΩ max. (initial)
- Insulation Resistance
- 100MΩ min. (at 500V DC)
- Dielectric Strength
- 1,500V AC 50/60 Hz for 1 minute
- Service Life (Mechanical)
- 100,000 operations min.
- Service Life (Electrical)
- 30,000 operations min.
- Rating
- 15 A 12 Vdc or 125 Vac / 10 A 24 Vdc or 250Vac
- Function
- .(ON)OFF一(ON)_DPDT
- 품번
- X6-2706-A3M2
주요 용도
Computer Peripherals 电脑外设 Telecommunications network 电信网络 TV Set-top box 电视机顶盒 Lamp Lighting 灯具照明 Consumer Electronics 消费类电子 Household appliances 家用电器 Car Rail Transportation 汽车轨道交通 Electronic toys 电子玩具 Power Tools Series 电动工具类 Industrial automation工业自动化
최소 주문 수량(MOQ)이 적용됩니다. 맞춤 도금 및 포장은 요청 시 제공됩니다.

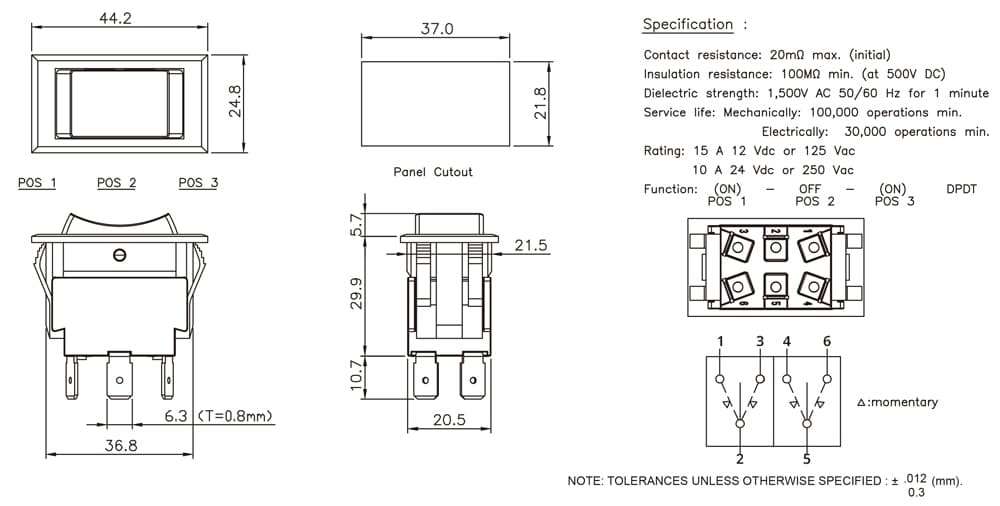

도면
DRAWING
주문 코드 체계
ORDER CODING
