FIG. X5-264ENN-2ABD-7F
제품 사진 · 차량용 스위치 / X5
X5양산 중
X5-264ENN-2ABD-7F
Computer Peripherals
제품 사양
- Rating (AC)
- 16(8)A 125/250V, ~μT55, ~μ40T85/55, 1E4, 50/60Hz (cURus, ENEC15)
- Rating (AC, alt)
- 20(8)A 125/250V, ~μT55, ~u40T85/55, 1E4, 50/60Hz (cURus, ENEC15)
- Rating (DC)
- 16A DC, 6~30V, μT55, μ40T85/55, 1E4, 50/60Hz (cURus, ENEC15)
- Electrical Life
- 6,000 cycles (cURus), 10,000 cycles (ENEC15)
- Dielectric Strength
- 1,500 VAC for 1 minute
- Initial Contact Resistance
- 20mΩ max.
- Insulation Resistance
- 100MΩ min, at 500VDC
- 품번
- X5-264ENN-2ABD-7F
주요 용도
Computer Peripherals 电脑外设 Telecommunications network 电信网络 TV Set-top box 电视机顶盒 Lamp Lighting 灯具照明 Consumer Electronics 消费类电子 Household appliances 家用电器 Car Rail Transportation 汽车轨道交通 Electronic toys 电子玩具 Power Tools Series 电动工具类 Industrial automation工业自动化
최소 주문 수량(MOQ)이 적용됩니다. 맞춤 도금 및 포장은 요청 시 제공됩니다.

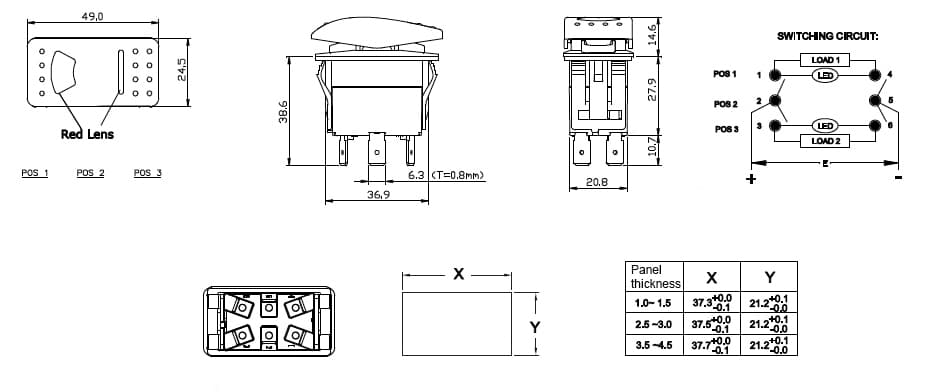

도면
DRAWING

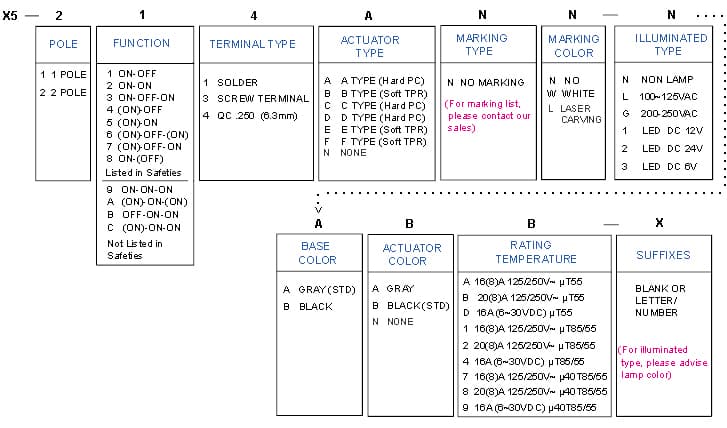

주문 코드 체계
ORDER CODING
