FIG. P8702-A5-R-E
제품 사진 · 토글 스위치 / TS40-P、T80-P
TS40-P、T80-P양산 중
P8702-A5-R-E
Electric fan
제품 사양
- Contact Rating
- 1A @125 VAC or 28 VDC
- Electrical Life
- 50,000 make and break cycles at full load
- Contact Resistance
- 20 mΩ max. initial @2-4 VDC,100 mA
- Insulation Resistance
- 1,000 MΩ min.
- Dielectric Strength
- 1,000 V RMS @ sea level.
- Operating Temperature
- -30°C to 85°C
- CASE
- diallyl phthalate (DAP)
- PLUNGER
- Glass filled nylon or glass filled polyester (UL94V-0)
- BUSHING
- Copper alloy, nickel plated
- HOUSING
- Stainless Steel
- CONTACT & TERMINAL
- Copper alloy, silver plated
- 품번
- P8702-A5-R-E
주요 용도
取暖器 heater; 电风扇 Electric fan; 监控摄像头 Surveillance camera; 冰箱 refrigerator; 空调air conditioning; 转向射灯 to shoot the light; 洗衣机 washing machine; 饮水机等家用电器 water dispenser; 其他机械设备Other mechanical equipment
최소 주문 수량(MOQ)이 적용됩니다. 맞춤 도금 및 포장은 요청 시 제공됩니다.

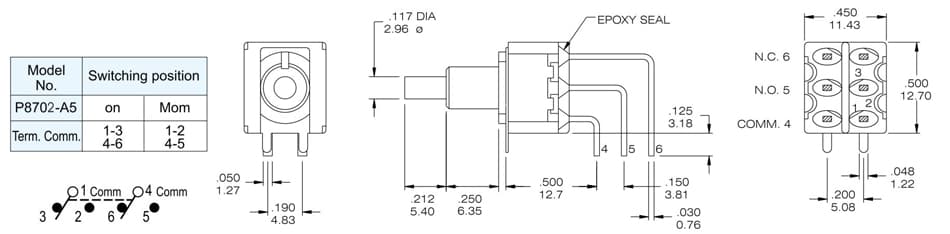

도면
DRAWING
