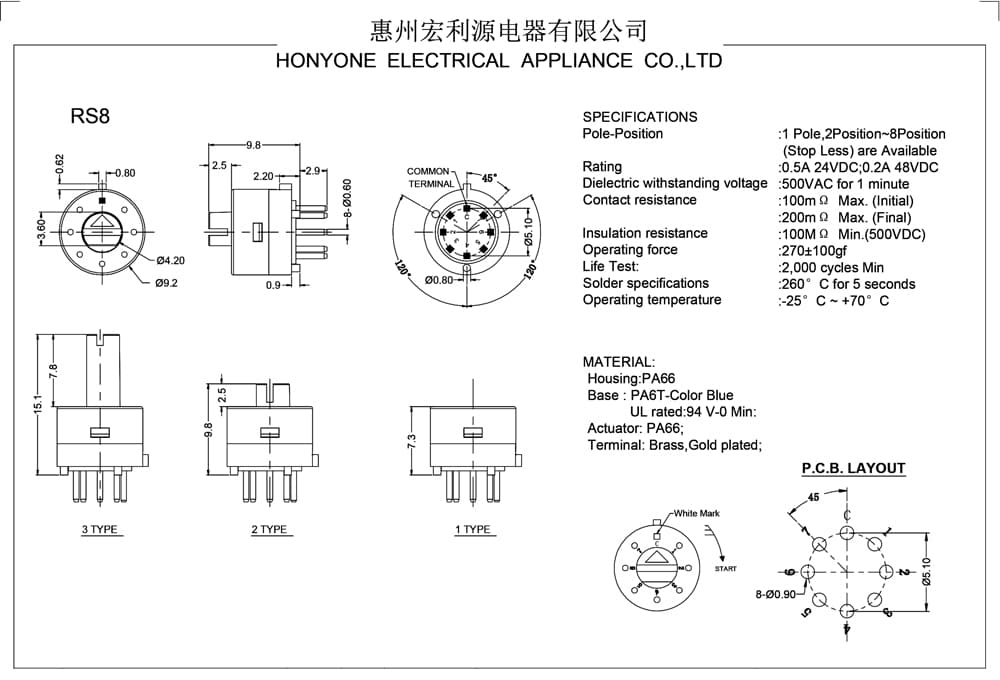

RS8-C8-1-1

Features/Benefits ：

제품 사양

Pole-Position: 1 Pole,2Position~8Position
Rating: 0.5A 24VDC;0.2A 48VDC
Dielectric withstanding voltage: 500vAC for 1 minute
Contact resistance: 100mΩMax. (Initial)
: 200m ΩMax.(Final)
Insulation resistance: 100MΩMin.(500VDC)
Operating Force: 270±100gf
Life Test: :2,000 cycles Min
Solder specifications: 260° C for 5 seconds
Operating temperature: -25° C ~+70° C

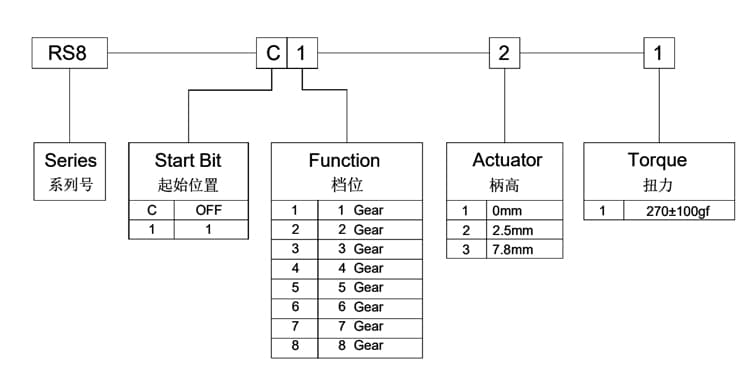

품번: RS8-C8-1-1

주요 용도

Features/Benefits 产品特征：; • Subminiature design saves space 微小型化设计，节约空间; • Screwdriver slot or extended shaft 螺丝刀槽，或者延长轴; • Positive detent 正顺时针旋转; • RoHS compliant 环保材质; Typical Applications 典型应用：; • Audio & visual equipment 音响视频设备; • Consumer electronics 消费类电子; • Telecom equipment 无信通信设备

최소 주문 수량(MOQ)이 적용됩니다. 맞춤 도금 및 포장은 요청 시 제공됩니다.
