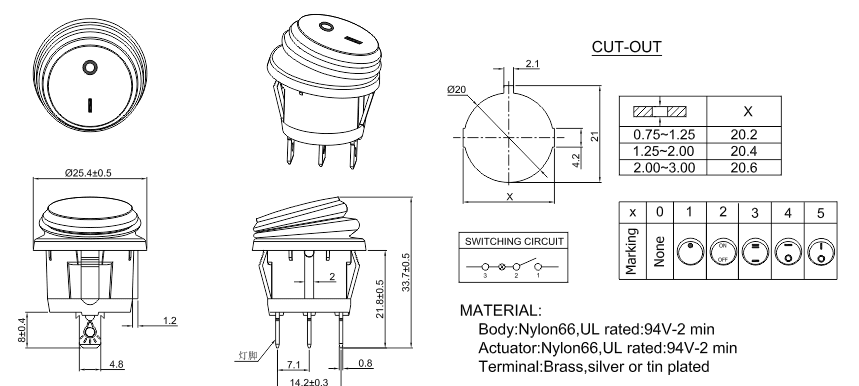

WR-210-P5L-BR

Computer Peripherals

제품 사양

Rating: 12A 125V AC;
Contact Resistance: 20mΩ Max. ;
Insulation Resistance: DC 500V 100MΩ Min. ;
Dielectric Strength: AC 1500V 1 minute
Operating Force: 450±200gf
Mechanical Life: 50,000 cycles
Load Life: 10,000 cycles
Operating Temperature: -20°C~+85"C
Protection type depending on mounting: IP65

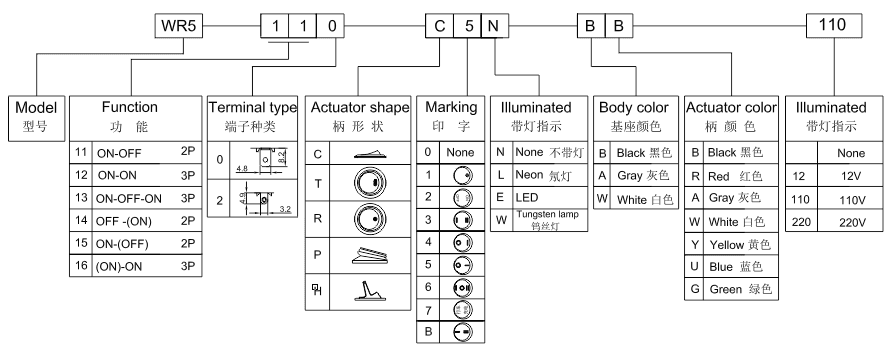

품번: WR-210-P5L-BR

주요 용도

Computer Peripherals 电脑外设; Telecommunications network 电信网络; TV Set-top box 电视机顶盒; Lamp Lighting 灯具照明; Consumer Electronics 消费类电子; Household appliances 家用电器; Car Rail Transportation 汽车轨道交通; Electronic toys 电子玩具; Power Tools Series 电动工具类; Industrial automation工业自动化

최소 주문 수량(MOQ)이 적용됩니다. 맞춤 도금 및 포장은 요청 시 제공됩니다.
