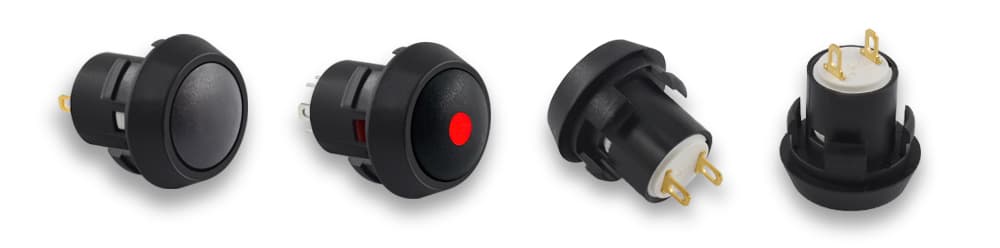

PB12B-1-M-1B-N-N

• Shorter switch body

제품 사양

Circuit: SPST
Current rating: 0.2A
Voltage rating: 250VAC
Dieletric withstanding voltage: 1000VAC for 1 minute
Contact resistance: 50mΩ Max
Inslation resistance: 100MΩ Min
Travel: 2.0mm±0.5mm
Operating Force: 500±150gf
Mechanical Life: Over 200,000 cycles
Electrical Life: Over 30,000 cycles
Manual Welding: 350°C for 3 seconds
Function: Momentary
Operating temperature: -20°C~+85°C
Level of protection: IP67
품번: PB12B-1-M-1B-N-N

주요 용도

• Shorter switch body; • Watertight to IP68S and IP69K, moistureproof IP64; • Tall & dome style buttons permitting printed legends; • Logic level option; • Quick disconnect terminals; • 5/8” thread, press fit & dome case options; • RoHS compliant

최소 주문 수량(MOQ)이 적용됩니다. 맞춤 도금 및 포장은 요청 시 제공됩니다.
