FIG. PB09B-Z-210-F0N-BB
제품 사진 · 푸시 버튼 스위치 / PB09B
PB09B양산 중
PB09B-Z-210-F0N-BB
• Communication equipment,
제품 사양
- Rating
- 10A 125V AC /6A 250VAC
- Contact Resistance
- 50mΩ Max
- Insulation Resistance
- DC500V 100mΩMin
- withstand Voltage
- 1500VAC for 1 Minute
- Operating Force
- 700±200gf
- Travel
- 5.0±0.5mm
- Life Cycle
- 10,000Cycles Min
- Function
- OFF-ON
- 품번
- PB09B-Z-210-F0N-BB
주요 용도
• Communication equipment,通信设备; • wireless application equipment 无线设备; • Electronic tester 电子测试。; • Automation equipment 自动化设备; • Transaction Equipment 交通运输设备; • Electronic equipment for people\’s livelihood; 民用电子设备
최소 주문 수량(MOQ)이 적용됩니다. 맞춤 도금 및 포장은 요청 시 제공됩니다.

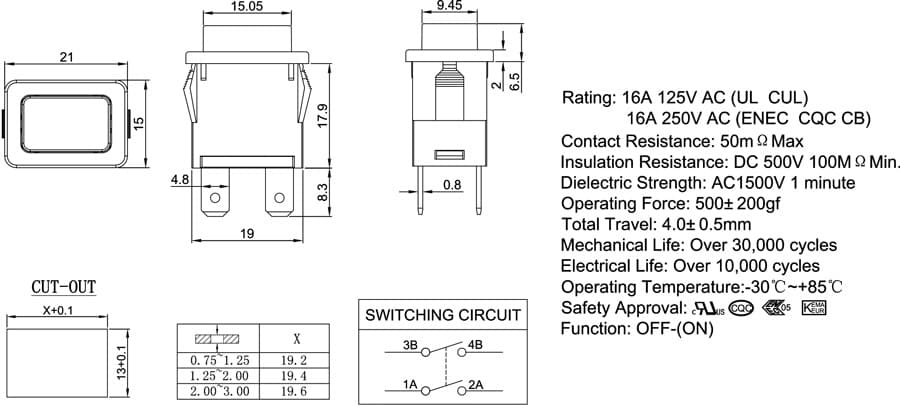

도면
DRAWING

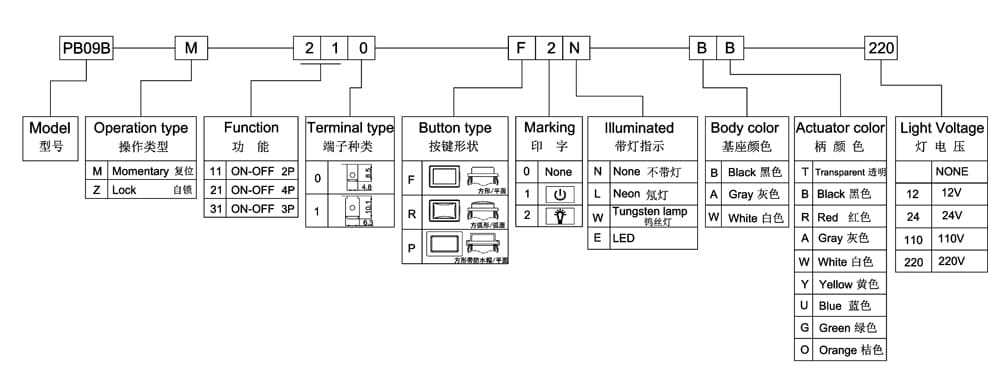

주문 코드 체계
ORDER CODING
