FIG. PB07A-N-NN-MNN
제품 사진 · 푸시 버튼 스위치 / PB07A
PB07A양산 중
PB07A-N-NN-MNN
Lighting Fixtures
제품 사양
- Current Rating
- 250mA/120V/9W AC /6W DC
- Dielectric withstanding voltage
- 1000VAC for 2 minute
- Contact Resistance
- 100mΩ Max
- Insulation Resistance
- 100MΩ Min.
- Operating Force
- 250±50gf
- Total Travel
- 1.8±0.4mm
- Opearating Force
- 500,000 Cycles Min
- Soldear Specifications
- 256℃ for 5 Seconds
- Openrating Temperature
- -40℃~+160℃
- 품번
- PB07A-N-NN-MNN
주요 용도
Lighting Fixtures 照明灯具; Automated production 自动化生产; Instruments and meters 仪器仪表; Professional Audio 专业音响; Testing equipment 检测设备; Electrical toys 电动玩具
최소 주문 수량(MOQ)이 적용됩니다. 맞춤 도금 및 포장은 요청 시 제공됩니다.

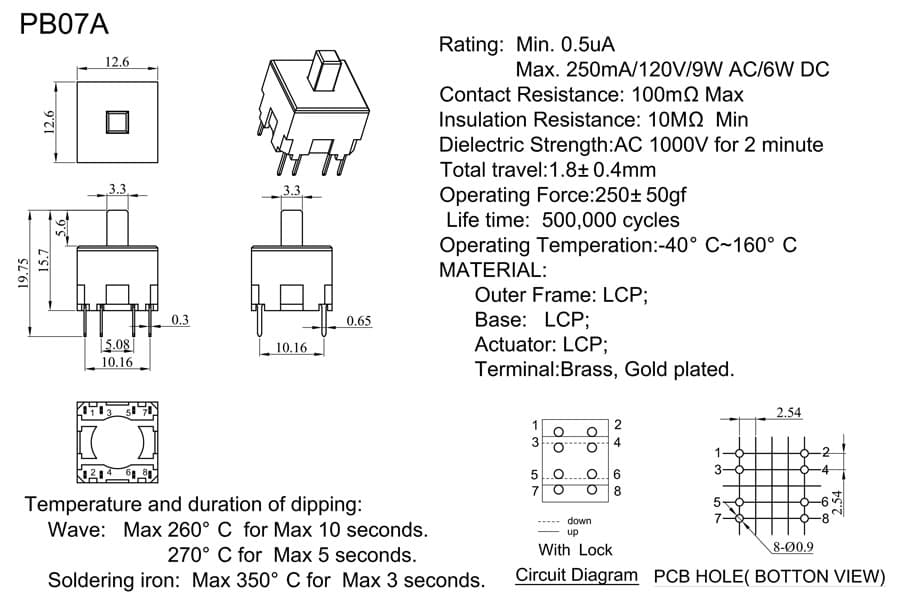

도면
DRAWING
주문 코드 체계
ORDER CODING
