FIG. PA16-13-RBU-NN-20
제품 사진 · 푸시 버튼 스위치 / PA16 Waterproof
PA16 Waterproof양산 중
PA16-13-RBU-NN-20
1.Designed for waterproof and dustproof applications,
제품 사양
- Resistive
- 2A 24VDC
- Contact Resistance
- 100mΩ Max.
- Insulation Resistance
- 100MΩ@500DVC
- Dielectric Strength
- AC 500V 1 minute
- Mechanical Life
- 1,000,000cycles
- Operating Temperation
- -20°C~+65°C
- Switch action
- Momentray
- Actuator Ingress Protection
- IP65,IP67 (Front Panel).
- Total traver
- 1.5±0.3mm
- Operating Force
- 7±2N
- Torque
- 0.5 to 1 Nm max.applied to nut
- 품번
- PA16-13-RBU-NN-20
주요 용도
1.Designed for waterproof and dustproof applications,; suitable for harsh outdoor and underwater environments.; 2.Supports high-power power supply, not limited to signal transmission only.; 3.Maximum rated working power: 500W
최소 주문 수량(MOQ)이 적용됩니다. 맞춤 도금 및 포장은 요청 시 제공됩니다.

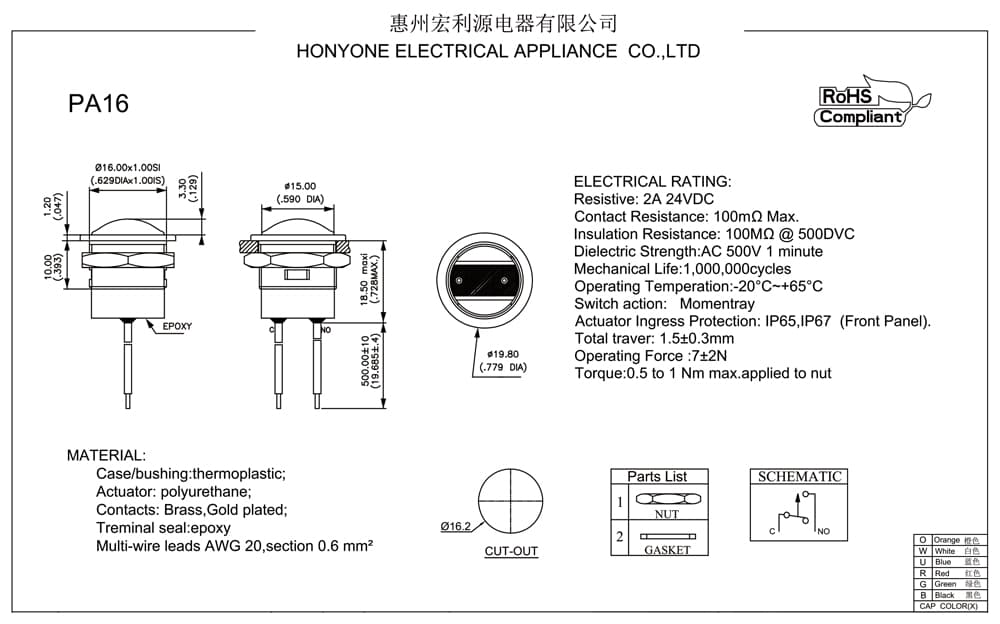

도면
DRAWING

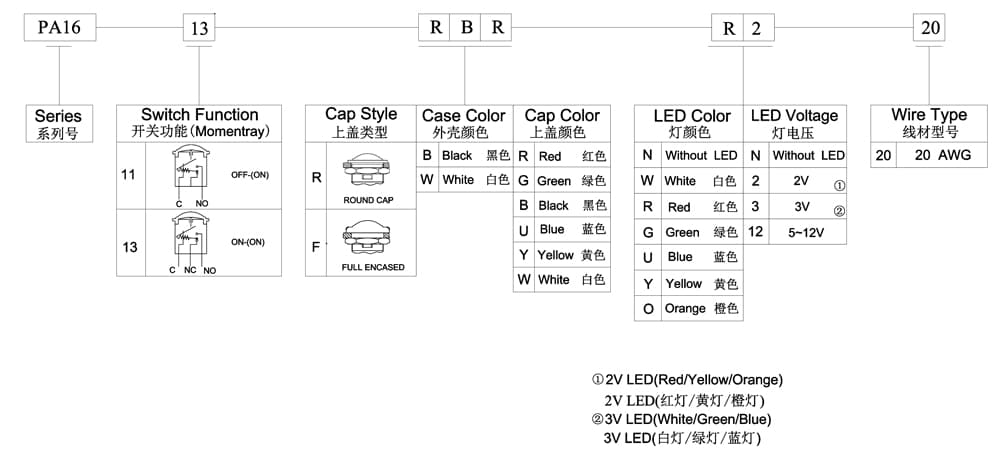

주문 코드 체계
ORDER CODING
