FIG. PBM19-11Z-R2-NNN-S0
제품 사진 · 메탈 푸시 버튼 스위치 / PBM19 (19mm)
PBM19 (19mm)양산 중
PBM19-11Z-R2-NNN-S0
Electronic lock system
제품 사양
- Rated voltage
- 2A Ui:250V;
- Working environment temperature
- -25℃～+65℃;
- Action form
- self-locking ;
- Movement stroke
- about3mm
- Connection form
- supporting connector/welding wire;
- Tightening torque
- 5-14nm; Switch combination : 1NO;
- Appearance material
- Keypad: Brass/stainless steel;
- Case
- Brass/ stainless steel; Pedestal : PBT;
- Protection grade
- IP65. Contact resistance:≤50m Ω.
- The insulation resistance
- ≥100M Ω
- Electrical resistance
- AC2500v，1min,noflicker and breakdown ;
- Life
- electrical part :50,000 times
- Mechanical part
- 500, 000times.
- 품번
- PBM19-11Z-R2-NNN-S0
주요 용도
电子门锁系统 Electronic lock system; 酒店设备 Hotel equipment; 通信医疗设备 Communication medical equipment; 小家电 Small home appliance; 航空航天船舶 Aerospace ship; 汽车周边产品 Automobile peripheral products
최소 주문 수량(MOQ)이 적용됩니다. 맞춤 도금 및 포장은 요청 시 제공됩니다.

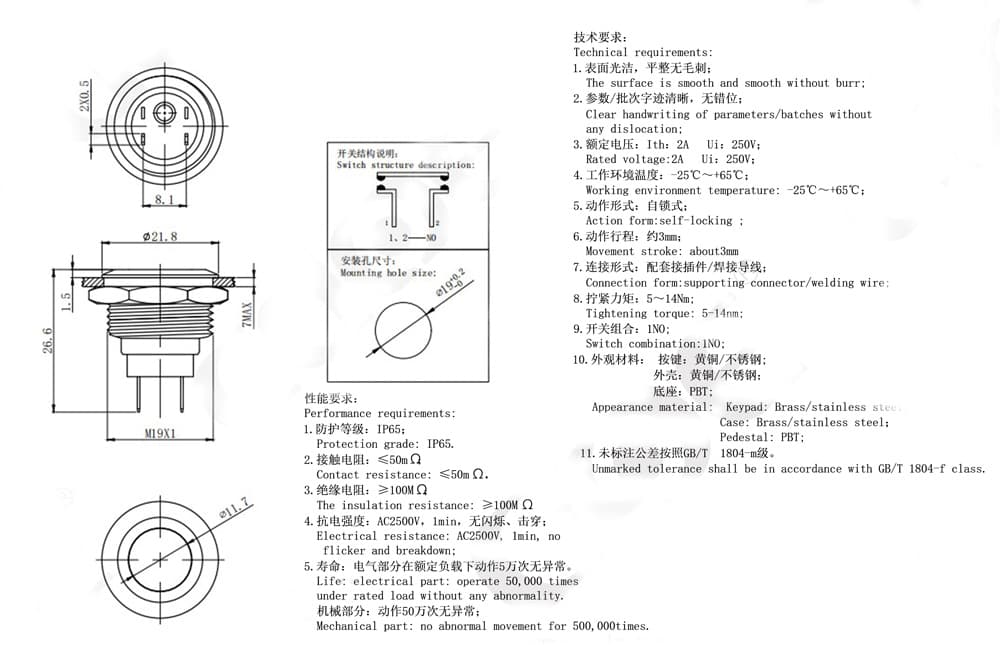

도면
DRAWING
주문 코드 체계
ORDER CODING
