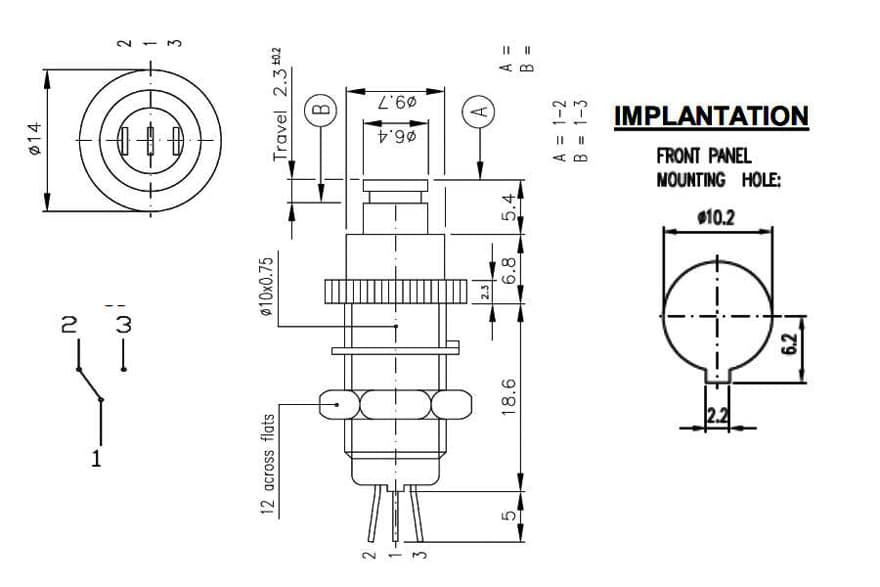

PBM10-13M-H-NNN-B1 防水IP67

Recommended

제품 사양

Rating: 3A 125VAC
: 1.5A 250VAC
Contact Resistance: 50mΩ Max
Insulation Resistance: DC 500V 100MΩ Min.
Dielectric Strength: AC 1000V 1 minute
Electrial Life: 100,000 cycles
Operating Temperature: -40℃~85℃
function: ON-(ON) 1-C-2
품번: PBM10-13M-H-NNN-B1 防水IP67

주요 용도

Recommended 产品特点与应用; The switches can be IP65 with fitted silicone cap; or IP 67 with fitted silicone cap.; 产品可以做到IP65/IP67防水等级; panel mounting holeof 10 mm dia.; 产品面板开孔尺寸仅为10mm.; outdoor applications, 户外设备; military and avionics equipment,军工与安防; telecommunications, 通信设备; medical equipment, 医疗设备; power supplies.电源供应器

최소 주문 수량(MOQ)이 적용됩니다. 맞춤 도금 및 포장은 요청 시 제공됩니다.
