FIG. TS7-3T-U-0
제품 사진 · LED 택트 스위치 / TS7
TS7양산 중
TS7-3T-U-0
Audio / Visual, Computer Peripherals, Consumer Electronics, Instrumentation, Telecommunication, Medical Equipment
제품 사양
- Rating (resistive load)
- 1 to 50 mA, 3 to 24 VDC
- Minimum applicable load (reference value)
- 10 μA at 1 VDC (resistive load)
- Ambient operating temperature
- −25°C to +70°C at 60% max.
- Ambient operating humidity
- 35% to 85% (at +5 to +35°C)
- Contact form
- SPST-NO
- Contact resistance (initial value)
- 100 mΩ max.
- Insulation resistance
- 100 MΩ min. (at 250 VDC with insulation tester)
- Dielectric strength
- 500 VAC, 50/60 Hz for 1 min
- 품번
- TS7-3T-U-0
주요 용도
Audio / Visual, Computer Peripherals, Consumer Electronics, Instrumentation, Telecommunication, Medical Equipment
최소 주문 수량(MOQ)이 적용됩니다. 맞춤 도금 및 포장은 요청 시 제공됩니다.

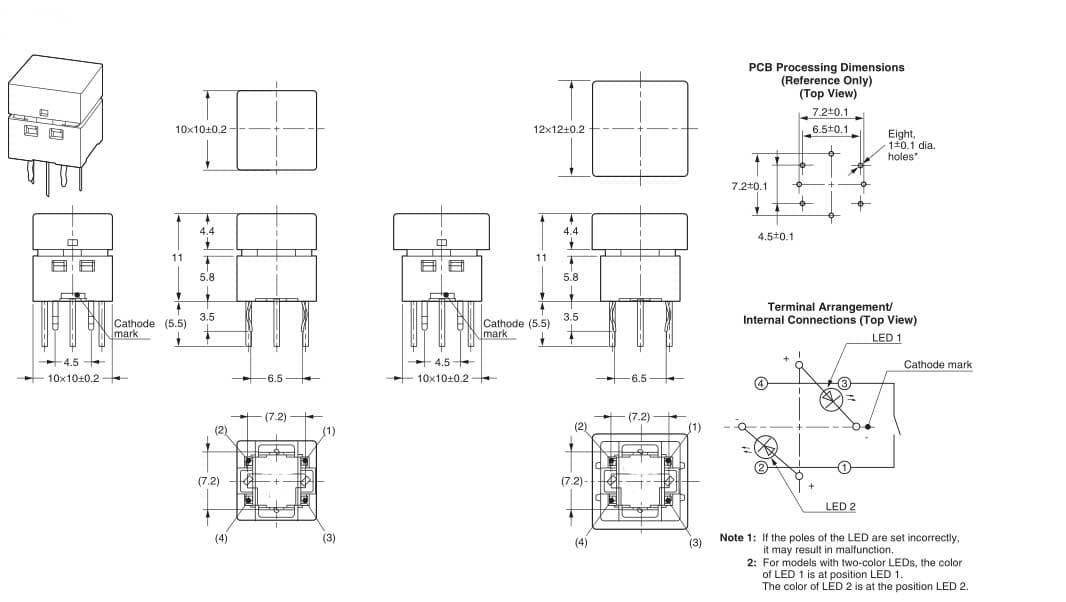

도면
DRAWING
주문 코드 체계
ORDER CODING
