FIG. TS3-2AU-3S
제품 사진 · LED 택트 스위치 / TS3
TS3양산 중
TS3-2AU-3S
Audio / Visual /
제품 사양
- Circuit
- SPST
- Current Rating
- 50mA
- Voltage Rating
- 12VDC
- Dielectric withstanding voltage
- 250VAC for 1 minute
- Contact Resistance
- 100mΩ Max .(intial)
- Insulation Resistance
- 100MΩ Min.
- Operating Force
- 180±50gf or 250+50gf
- Total Travel
- 0.25±0.1mm
- Life Cycles
- 200,000 Cycles Min
- Solder Specifications
- 260°C for 3 Seconds
- Function
- Momentary
- Operating Temperature
- -20°C~+ 70°C
- 품번
- TS3-2AU-3S
주요 용도
Audio / Visual 音响/视听设备; Computer Peripherals 电脑外设; Consumer Electronics 消费类电子; Instrumentation 仪器仪表; Telecommunication 电信，通信设备; Medical Equipmen 医疗设备
최소 주문 수량(MOQ)이 적용됩니다. 맞춤 도금 및 포장은 요청 시 제공됩니다.

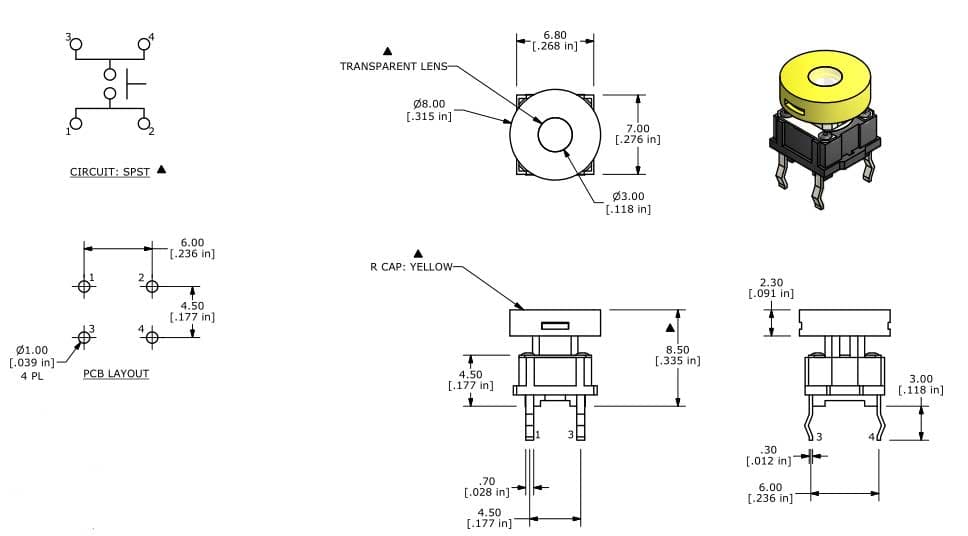

도면
DRAWING
주문 코드 체계
ORDER CODING
