제품 사진 · LED 택트 스위치 / TS2
TS2-00-4GW-0N-(25)2P
The light touch switch has the advantages of small contact resistance load, accurate operating force error and diversified specifications, and has been widely used in electronic…
제품 사양
- Circuit
- SPST 1P1T
- Current Rating
- 50mA
- Voltage Rating
- 12VDC
- Dielectric Withstanding Voltage
- 250VAC for 1 minute
- Contact Resistance
- 100mΩ Max .(intial)
- Insulation Resistance
- 100MΩ Min,
- Operating Force
- 180±50gf or 250±50gf
- Total Travel
- 0.25±0.1mm
- Life Cycles
- 200,000 Cycles Min
- Solder Specifications
- 260°C for 3 Seconds
- Function
- Momentary
- Operating Temperature
- -20°C~ +70°C
- 품번
- TS2-00-4GW-0N-(25)2P
주요 용도
The light touch switch has the advantages of small contact resistance load, accurate operating force error and diversified specifications, and has been widely used in electronic equipment and white household appliances.
최소 주문 수량(MOQ)이 적용됩니다. 맞춤 도금 및 포장은 요청 시 제공됩니다.

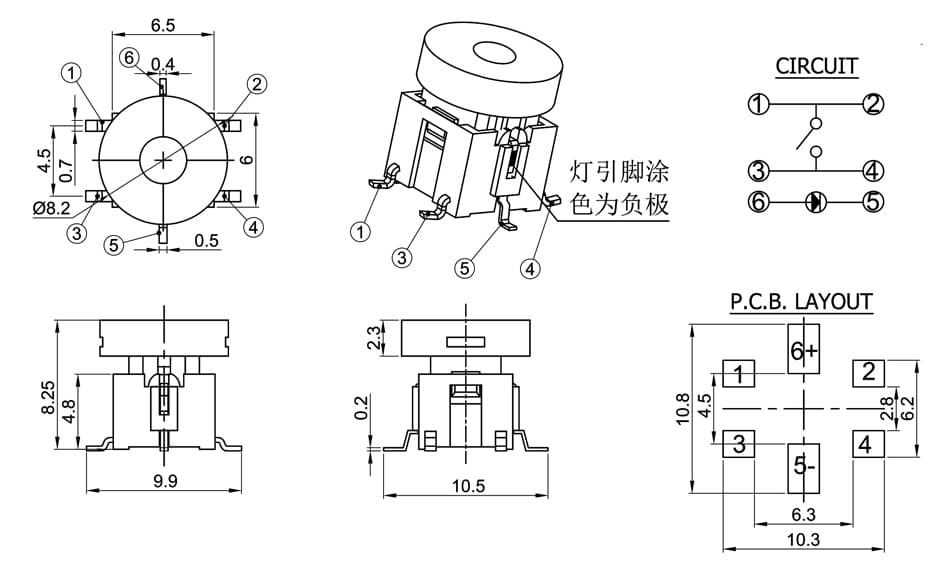

도면
DRAWING
주문 코드 체계
ORDER CODING
