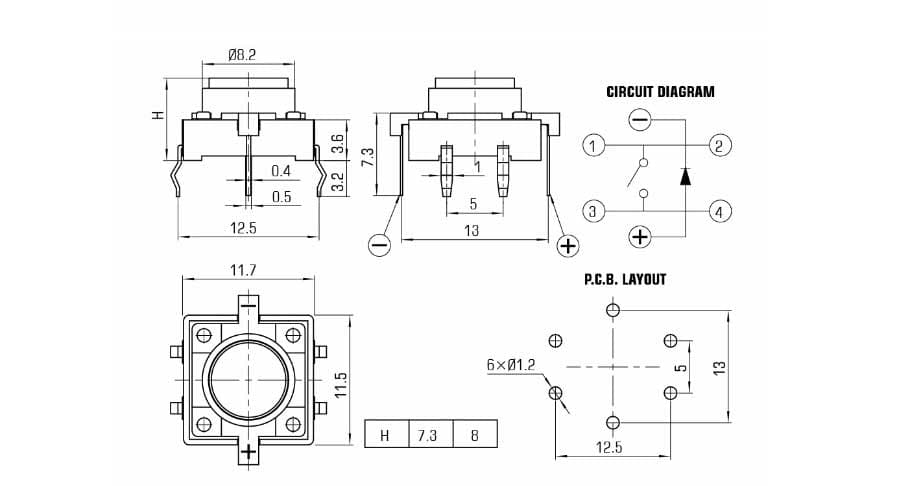

TS12-12.5H-Y

Audio / Visual Computer Peripherals

제품 사양

Rating: 50mA 12VDC
Contact Resistance: 100mΩ Max .(intial)
Insulation Resistance: 100MΩ Min.
Dielectric Strength: 250VAC for 1 minute
Stroke: 0.25±0.1mm
Operating Force: 160± 50gf
Mechanical life: 10,0000 Cycles Min
품번: TS12-12.5H-Y

주요 용도

Audio / Visual 、Computer Peripherals Consumer Electronics、Instrumentation Telecommunication、Medical Equipmen Product word： Led tact switches，15*15 push button switches， circular led tact switches，12*12 push button switches， 12*12 led push button switches，15mm led tact switches， restoration led tact switches，LED tact switches， led push button switches,Tact push button switches

최소 주문 수량(MOQ)이 적용됩니다. 맞춤 도금 및 포장은 요청 시 제공됩니다.
