FIG. TSL06121
제품 사진 · LED 택트 스위치 / 6*6 Illuminated
6*6 Illuminated양산 중
TSL06121
Illuminated Tact Switch
제품 사양
- Funtion
- Momentary action
- Contact Arrangement
- SPST, Normally Open
- Termination
- THD version
- ELECTRICAL RATING
- 50mA , DC12V
- CONTACT RESISTANCE
- ≤100mΩ
- INSULATION RESISTANCE
- ≥100MΩ
- DIELECTRIC STRENGTH
- AC250V for 1 Minute
- LIFE EXPECTANCY
- 100,000 cycles
- TRAVEL
- 0.25mm±0.1mm
- 품번
- TSL06121
상세 표
| LED SPECIFICATIONS | ||||||
| Part Number | Color | Dominant Wave length (Unit:nm,IF=20mA) | Luminous intensity (Unit:mcd,IF=20mA) | Forward Voltage (Unit:V,IF=20mA) | Viewing Angle 2θ 1/2 | |
| Typical | Typical | Typical | Max | |||
| DL01B01 | Red | 621 | 1200 | 2.0 | 2.3 | 35 |
| DL01J01 | Yellow | 590 | 1200 | 2.0 | 2.3 | 35 |
| DL01K01 | Orange | 605 | 1000 | 2.0 | 2.4 | 30 |
| DL01D01 | Blue | 460 | 200 | 3.0 | 3.2 | 60 |
| DL01C01 | Green | 522 | 1800 | 3.0 | 3.4 | 35 |
| DL01E01 | White | 1200 | 3.2 | 3.6 | 35 |
주요 용도
Industrial control industry; Household appliances industry; Security equipment industry; Office equipment industry; Computer, Communication, and Consumer electronics industry; Medical equipment industry
최소 주문 수량(MOQ)이 적용됩니다. 맞춤 도금 및 포장은 요청 시 제공됩니다.

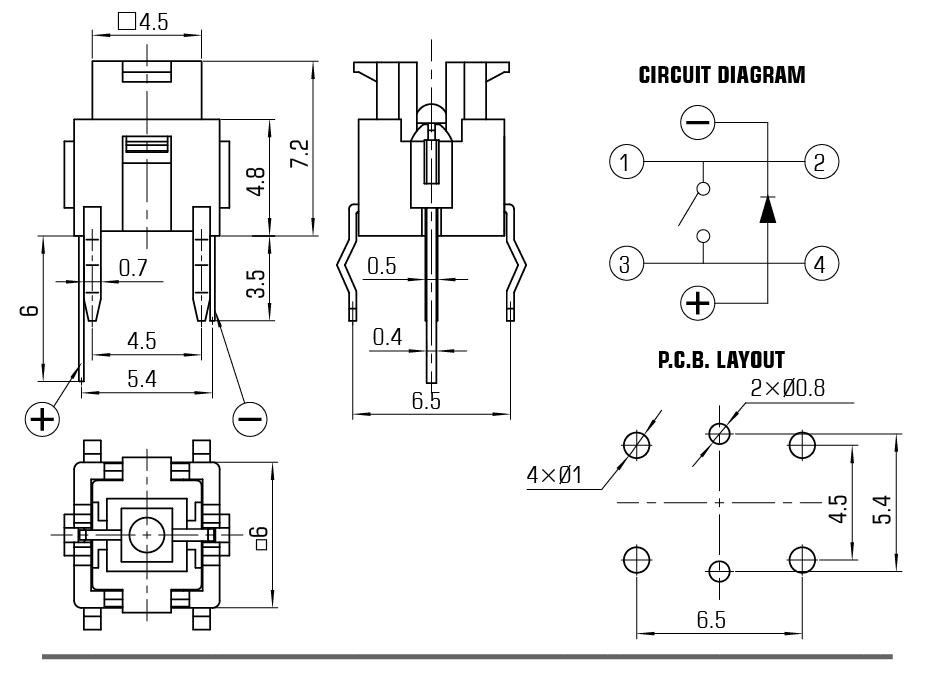

도면
DRAWING
