FIG. PB66-E2-R-N-GR-2
제품 사진 · LED 푸시 버튼 스위치 / PB66 UPGRADED VERSION
PB66 UPGRADED VERSION양산 중
PB66-E2-R-N-GR-2
Stage Lighting control equipment
제품 사양
- Circuit
- SPDT
- Current Rating
- 12mA
- Voltage Rating
- 24VDC
- Contact Resistance
- 50mΩ Max.(intial)
- Insulation Resistance
- 100MΩ Min.
- Operating Force
- 170±50gf
- Total Travel
- 2.0±0.4mm
- Life Cycles
- 500,000 cycles
- Solder Specifications
- 350°C for 3 Seconds
- Function
- Momentary
- Operating Temperature
- -20°C~ +70°C
- 품번
- PB66-E2-R-N-GR-2
주요 용도
Stage Lighting control equipment; 舞台灯光控制设备; Video processor 视频处理器; Matrix Controller 矩阵控制器; Security equipment 安防设备; Cashier Equipment 收银设备
최소 주문 수량(MOQ)이 적용됩니다. 맞춤 도금 및 포장은 요청 시 제공됩니다.

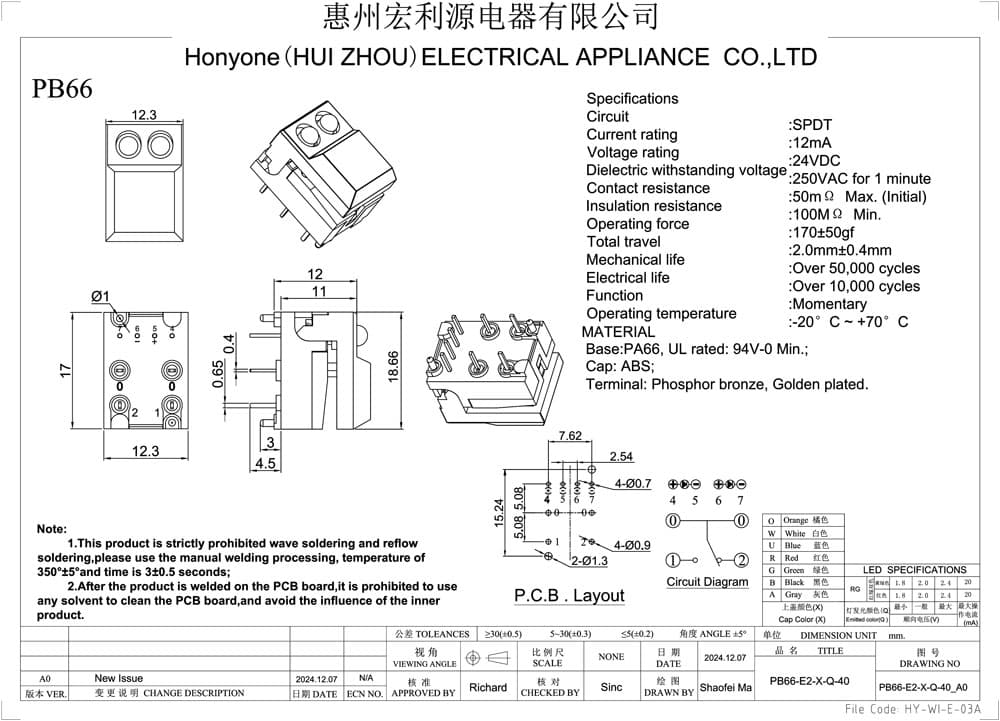

도면
DRAWING
주문 코드 체계
ORDER CODING
