FIG. PB06-E-WT-W-N-Y
제품 사진 · LED 푸시 버튼 스위치 / PB06
PB06양산 중
PB06-E-WT-W-N-Y
Video processor
제품 사양
- Circuit
- SPST
- Current rating
- 100mA
- Voltage rating
- 12VDC
- Dielectric withstanding voltage
- 250vAC for 1 minute
- Contact resistance
- 200mΩ Max.(Initial)
- Insulation resistance
- 100MΩ Min.
- Operating Force
- 250±100gf
- Full travel
- 4.5mm±0.2mm
- Mechanical life
- Over 2,000,000 cycles
- Electrical life
- Over 1,000,000 cycles
- Manual welding
- 350°C for 3 seconds
- Operating temperature
- -20°C~+70°℃
- Function
- OFF-(ON)
- 품번
- PB06-E-WT-W-N-Y
주요 용도
Video processor 视频处理器; Security Monitoring Equipment; 安防监控设备; Teaching recording and broadcasting equipment; 教学录播设备; Consumer Electronics 消费类电子; Audio equipment 音响设备
최소 주문 수량(MOQ)이 적용됩니다. 맞춤 도금 및 포장은 요청 시 제공됩니다.

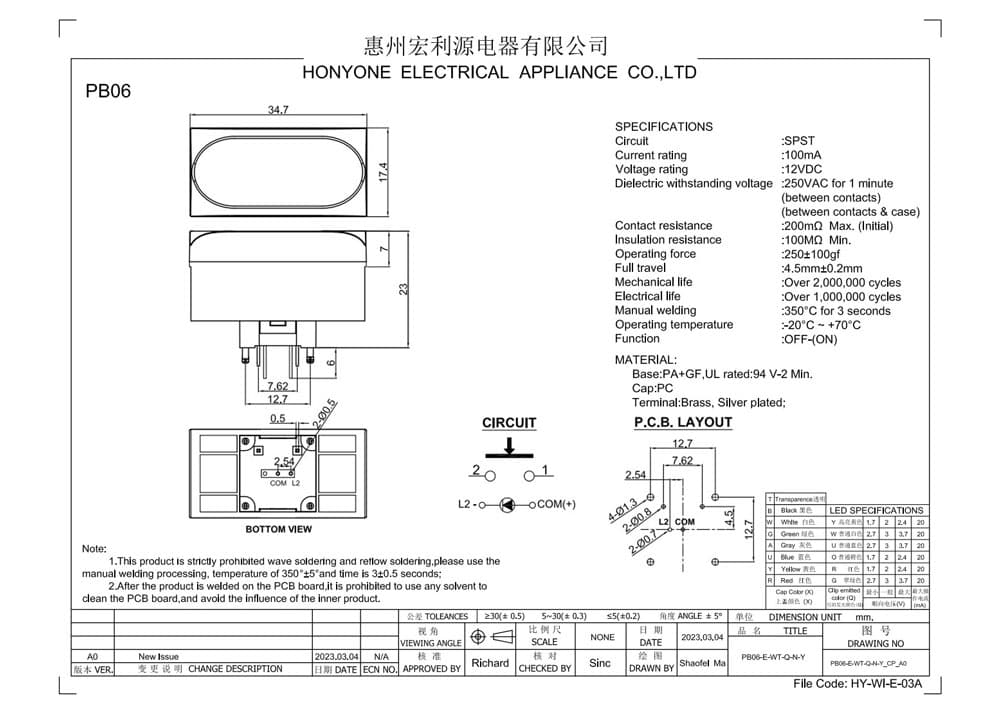

도면
DRAWING
주문 코드 체계
ORDER CODING
