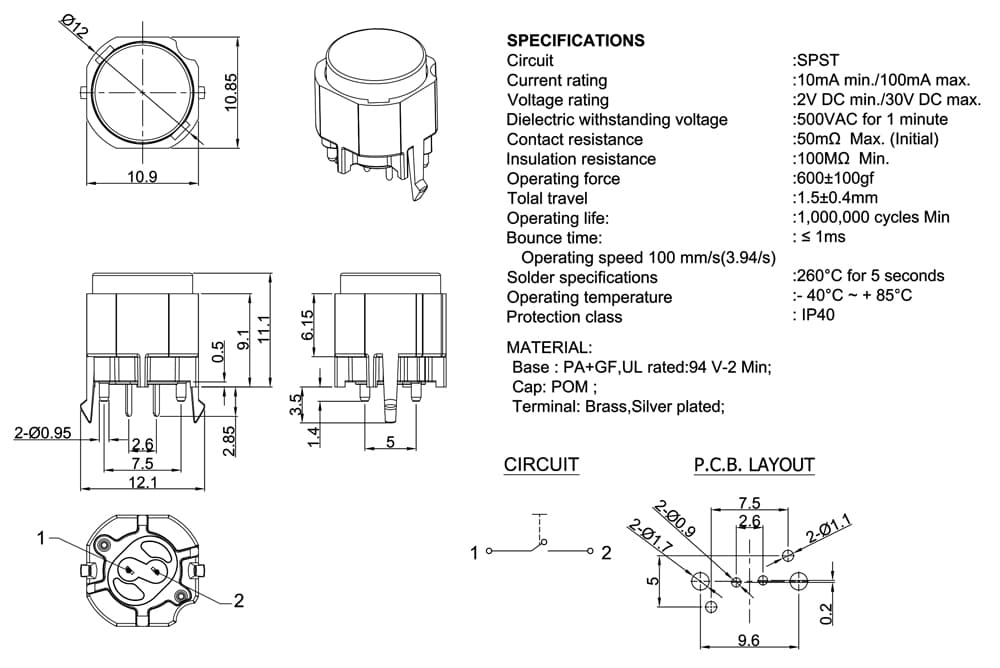

KS12-GO1.5-WWN-6/12N-S

• Electronic handle

제품 사양

Circuit: SPST
Current rating: 10mA min./100mA max.
Voltage rating: 2V DC min ./30V DC max.
Dielectric withstanding voltage: 500VAC for 1 minute
Contact resistance: 50mΩ Max. (Initial)
Insulation resistance: 100MΩ Min.
Operating Force: 600±100gf
Tolal travel: 1.5±0.4mm
Life Cycles: :1,000,000 cycles Min
Bounce time: :≤1ms
Solder specifications: 260°C for 5 seconds
Operating temperature: -40°C~ + 85°C
Protection class: IP40
품번: KS12-GO1.5-WWN-6/12N-S

주요 용도

• Electronic handle 电控手柄; • Off-road transportation 户外交通运输; • Joysticks 操纵杆; • Typically used in cranes 起重机; • Construction equipment 建筑工程机械; • Agricultural equipment 农业设备; • Mining,equipment. 采矿设备 • Computers & network equipment 电脑周边设备

최소 주문 수량(MOQ)이 적용됩니다. 맞춤 도금 및 포장은 요청 시 제공됩니다.
