FIG. S-03DF-02 double fuse
제품 사진 · IEC 전원 인렛 / Power inlet+Double fuseholder
Power inlet+Double fuseholder양산 중
S-03DF-02 double fuse
Circuit overload Protection
제품 사양
- Rating
- 10 A 250VAC(UL CUL)
- Insulation Resistance
- DC 500V 100MQ Min
- Dielectric Strength
- AC 2000V1minute
- Fuse
- ∅5.0x20mm
- Welding method
- Manual Soldering
- 품번
- S-03DF-02 double fuse
주요 용도
Circuit overload Protection电路过载保护; Automotive Electronics 汽车电子; Household appliances 家用电器; Beauty Equipment 美容器材; Medical equipment 医疗设备; Instruments and meters 仪器仪表; Product word：; AC power socket，three-in-one socket，two-in-one socket，; with switch and safety socket，Double fuse outlet, double fuse outlet; with switch and safety socket，Double fuse outlet, double fuse outlet
최소 주문 수량(MOQ)이 적용됩니다. 맞춤 도금 및 포장은 요청 시 제공됩니다.

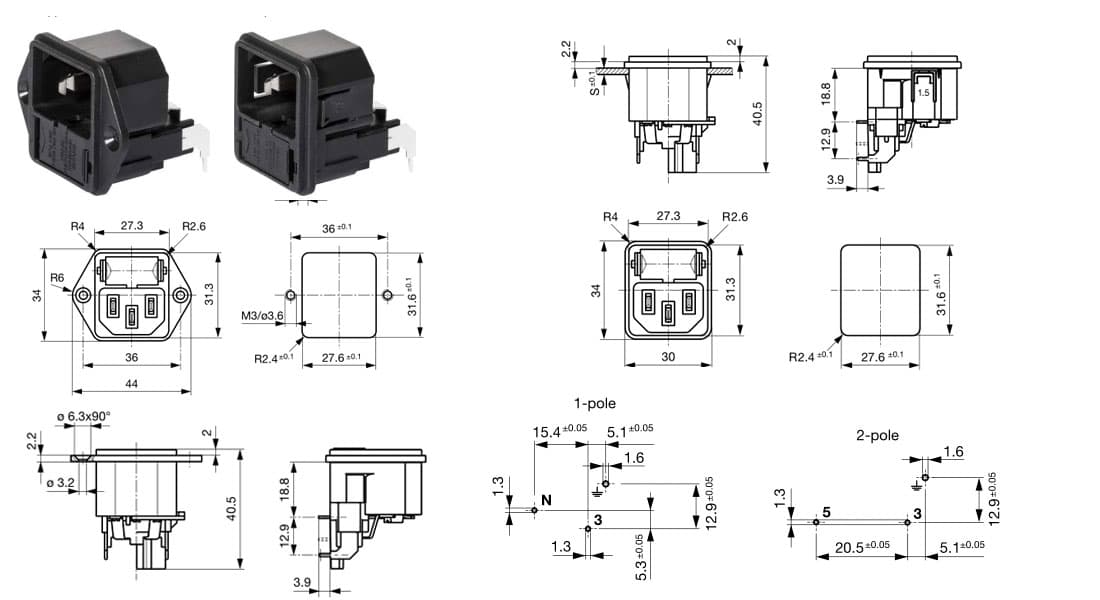

도면
DRAWING
