FIG. TSA06131-0020
제품 사진 · 일반 택트 스위치 / 6*6
6*6양산 중
TSA06131-0020
Tact Switch
제품 사양
- Funtion
- Momentary action
- Contact Arrangement
- SPST, Normally Open
- Termination
- THD version
- ELECTRICAL RATING
- 50mA , DC12V
- CONTACT RESISTANCE
- ≤50mΩ/≤100mΩ
- INSULATION RESISTANCE
- ≥100MΩ
- DIELECTRIC STRENGTH
- AC250V for 1 Minute
- LIFE EXPECTANCY
- 100,000/300,000 cycles
- TRAVEL
- 0.25mm±0.1mm
- 품번
- TSA06131-0020
상세 표
| H | 7 | 7.4 | 7.5 | 7.6 | 8 | 8.3 | 8.5 | 9 | 9.5 | 9.8 | 10 | 10.5 | 10.7 | 10.9 | 11 | 11.3 |
| H | 11.5 | 12 | 12.5 | 13 | 13.5 | 14 | 14.5 | 15 | 15.5 | 16 | 16.5 | 16.6 | 17 | 17.5 | 18 | 18.5 |
| H | 19 | 19.5 | 20 | 20.5 | 20.7 | 21.2 | 22 | 23 | 24 | 24.5 | 25.5 | 25.8 | 26 | 27 |
주요 용도
Industrial control industry; Household appliances industry; Security equipment industry; Office equipment industry; Computer, Communication, and Consumer electronics industry; Medical equipment industry
최소 주문 수량(MOQ)이 적용됩니다. 맞춤 도금 및 포장은 요청 시 제공됩니다.

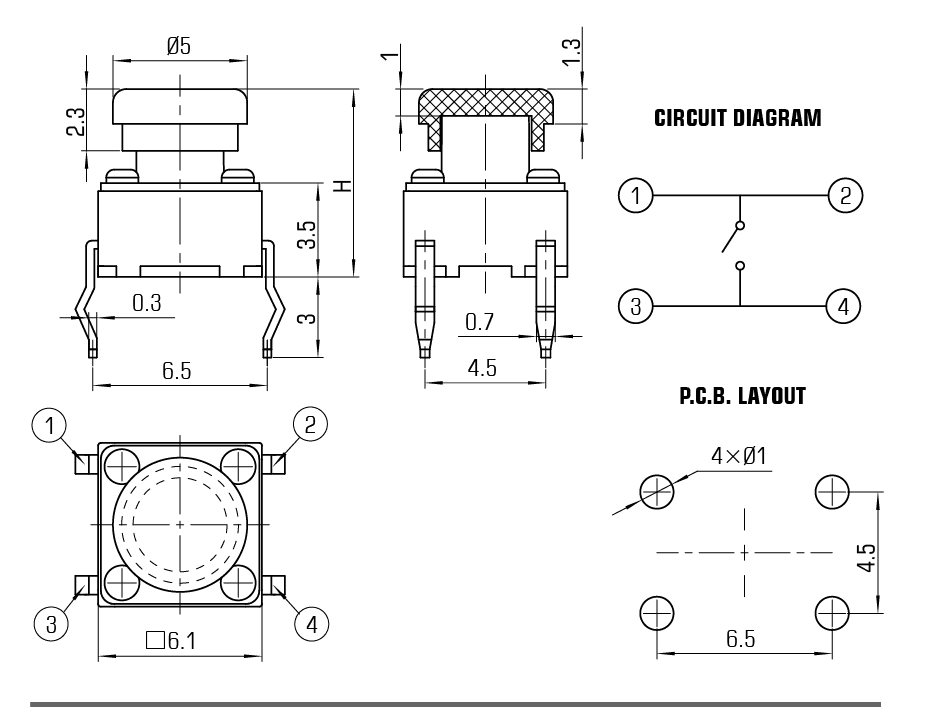

도면
DRAWING
