TSA12111

Tact Switch

제품 사양

Funtion: Momentary action
Contact Arrangement: SPST, Normally Open
Termination: THD version
ELECTRICAL RATING: 50mA , DC12V
CONTACT RESISTANCE: ≤50mΩ/≤100mΩ
INSULATION RESISTANCE: ≥100MΩ
DIELECTRIC STRENGTH: AC250V for 1 Minute
LIFE EXPECTANCY: 100,000/300,000 cycles
TRAVEL: 0.3mm±0.1mm
품번: TSA12111

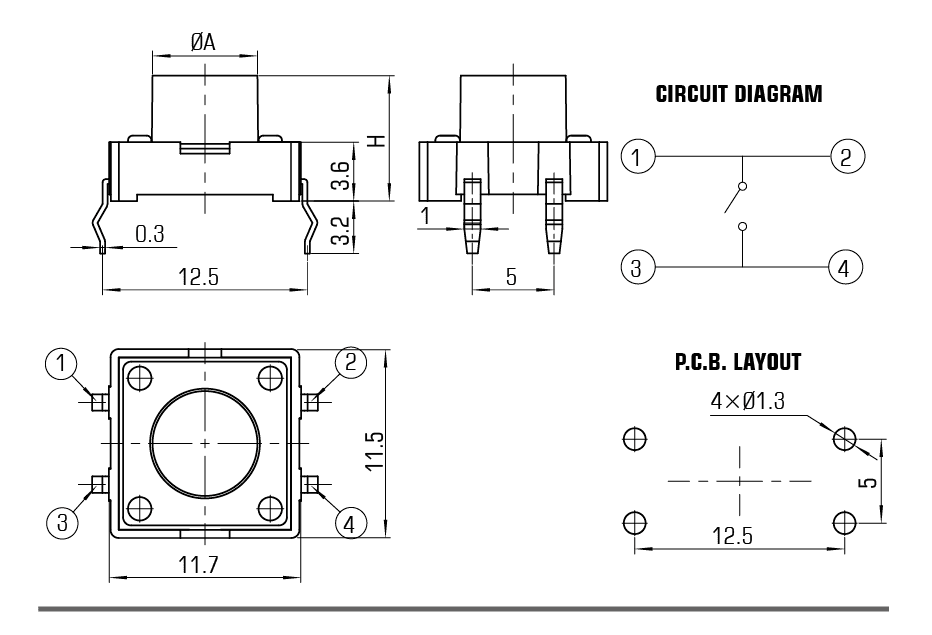

H	4.3	4.5	5	5.5	6	6.5	7	7.5	7.7	8	8.5	9	9.5	10
A	6.4	6.4	6.4	6.4	6.4	6.2	6.3	6.2	6.2	6.3	6.3	6.2	6.2	6.3
H	10.5	11	11.5	12	12.5	13	14	15	15.5	17	18	19.7	21
A	6.2	6.2	6.2	6.2	6.2	6.2	6.2	6.2	6.2	6.1	6.1	6.1	6.1

주요 용도

Industrial control industry; Household appliances industry; Security equipment industry; Office equipment industry; Computer, Communication, and Consumer electronics industry; Medical equipment industry

최소 주문 수량(MOQ)이 적용됩니다. 맞춤 도금 및 포장은 요청 시 제공됩니다.
