FIG. TSE04410
제품 사진 · 방진 택트 스위치 / 3*3.5
3*3.5양산 중
TSE04410
Dustproof Tact Switch
제품 사양
상세 표 1
| SPECIFICATIONS | |
| Funtion | Momentary action |
| Contact Arrangement: | SPST,Normally Open |
| Termination: | SMD version |
| Environmental | |
| Operating Temperature | -25 ～ +70 ℃ |
| Relative Humidity | (40 ℃ )≤95% |
| Electrical | |
| Contact Rating | 50mA 12V DC |
| Dielectric Strength: | 250VAC /1min |
| Contact Resistance | 100mΩ Max |
| nsulation Resistance: | 100MΩ Min |
| Travel: | 0.2±0.1mm |
| Sealing | IP6X |
| Mechanical | |
| Actuation Force: | 220gf |
| Life Expectancy | 100K |
상세 표 2

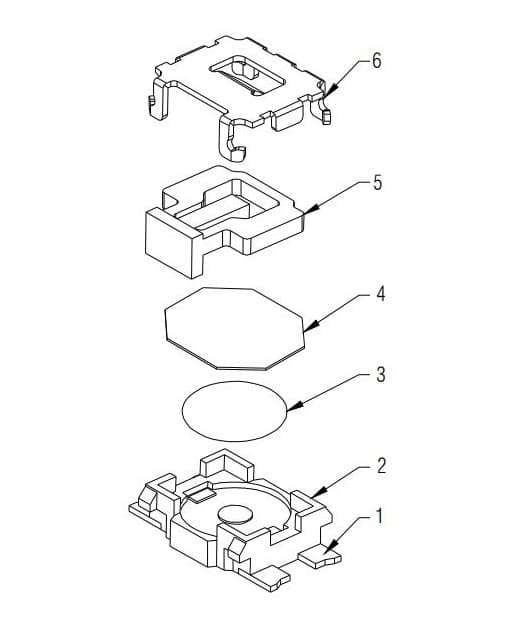

| Materials | |
| 6.Cover: | Stainless steel |
| 5.Stem | Black PA46 |
| 4.Waterproof membrane | Polyimide |
| 3.Spring | Stainless steel covered with silver |
| 2.Holder: | Black LCP |
| 1. Terminal: | Phosphor copper plated with silver |
주요 용도
Industrial control industry; Household appliances industry; Security equipment industry; Office equipment industry; Computer, Communication, and Consumer electronics industry; Medical equipment industry
최소 주문 수량(MOQ)이 적용됩니다. 맞춤 도금 및 포장은 요청 시 제공됩니다.
도면
DRAWING
기술 자료

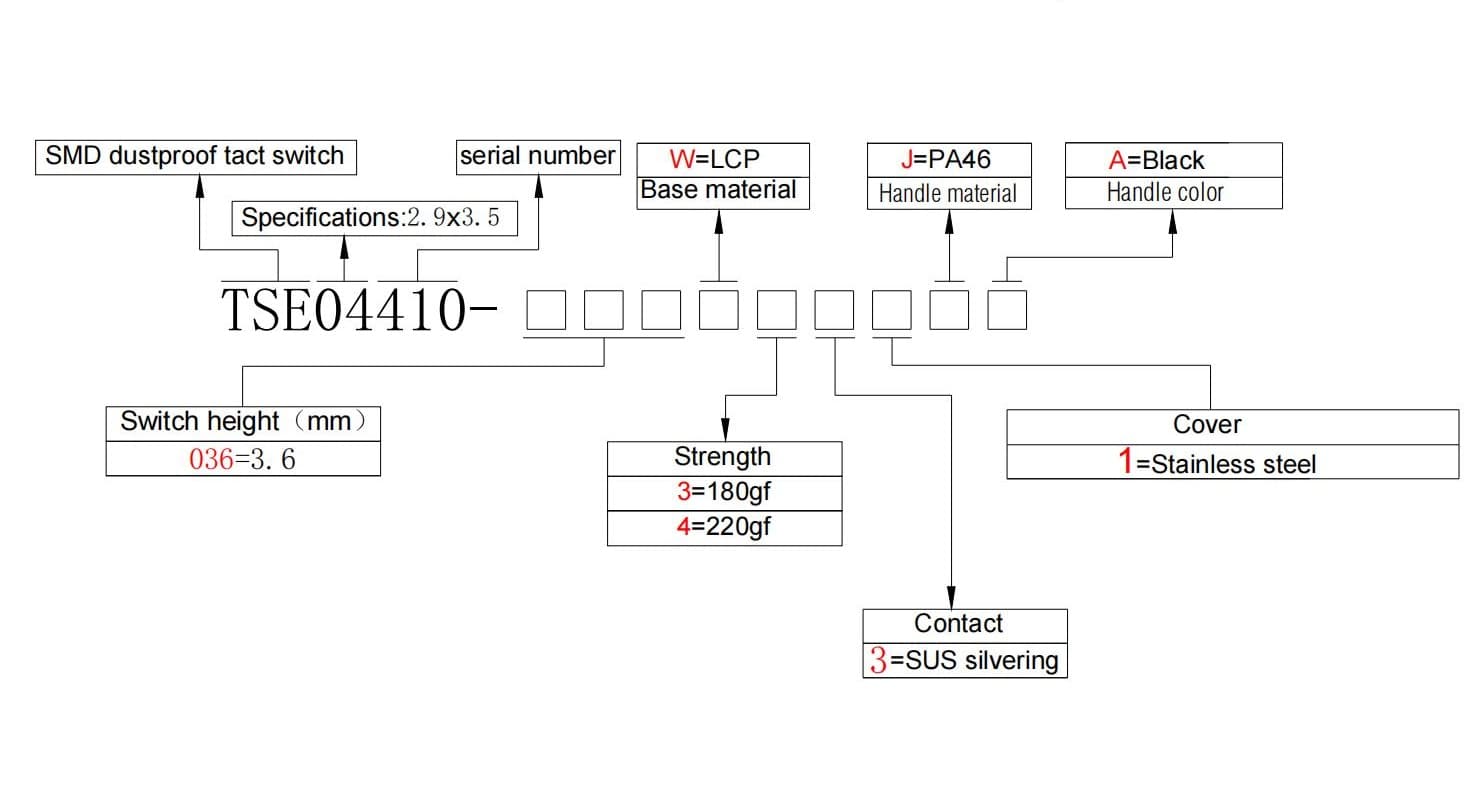

FIG. 2
기술 자료
FIG. 3
