FIG. TSE03440
제품 사진 · 방진 택트 스위치 / 3*2.5
3*2.5양산 중
TSE03440
Dustproof Tact Switch
제품 사양
상세 표 1
| SPECIFICATIONS | |
| Funtion | Momentary action |
| Contact Arrangement | SPST,Normally Open |
| Termination | SMD version |
| Environmental | |
| Operating Temperature | -25 ～ +70 ℃ |
| Relative Humidity: | (40 ℃ )≤95% |
| Electrical | |
| Contact Rating | 50mA 12V DC |
| Dielectric Strength | 250VAC /1min |
| Contact Resistance | 100mΩ Max. |
| nsulation Resistance: | 100MΩ Min. |
| Travel: | 0.15±0.05mm |
| Sealing | IP6X |
| Mechanical | |
| Actuation Force | 220gf |
| Life Expectancy: | 100K |
상세 표 2

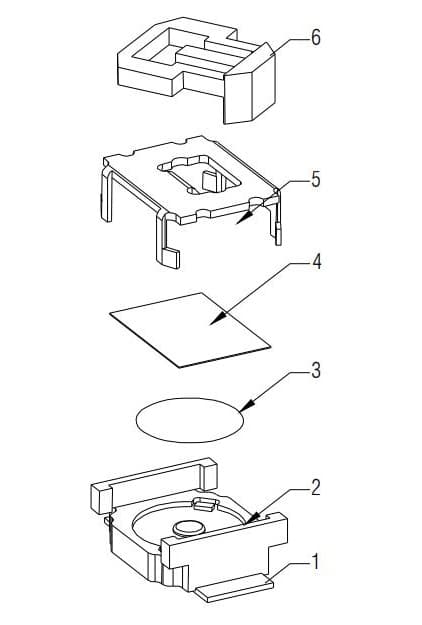

| Materials | |
| 6.Stem | Black PPA |
| 5.Cover: | Stainless steel |
| 4.Waterproof membrane | Polyimide |
| 3.Spring: | Stainless steel covered with silver |
| 2.Holder: | White LCP |
| 1.Terminal: | Phosphor copper plated with silver |
주요 용도
Industrial control industry; Household appliances industry; Security equipment industry; Office equipment industry; Computer, Communication, and Consumer electronics industry; Medical equipment industry
최소 주문 수량(MOQ)이 적용됩니다. 맞춤 도금 및 포장은 요청 시 제공됩니다.
도면
DRAWING
기술 자료

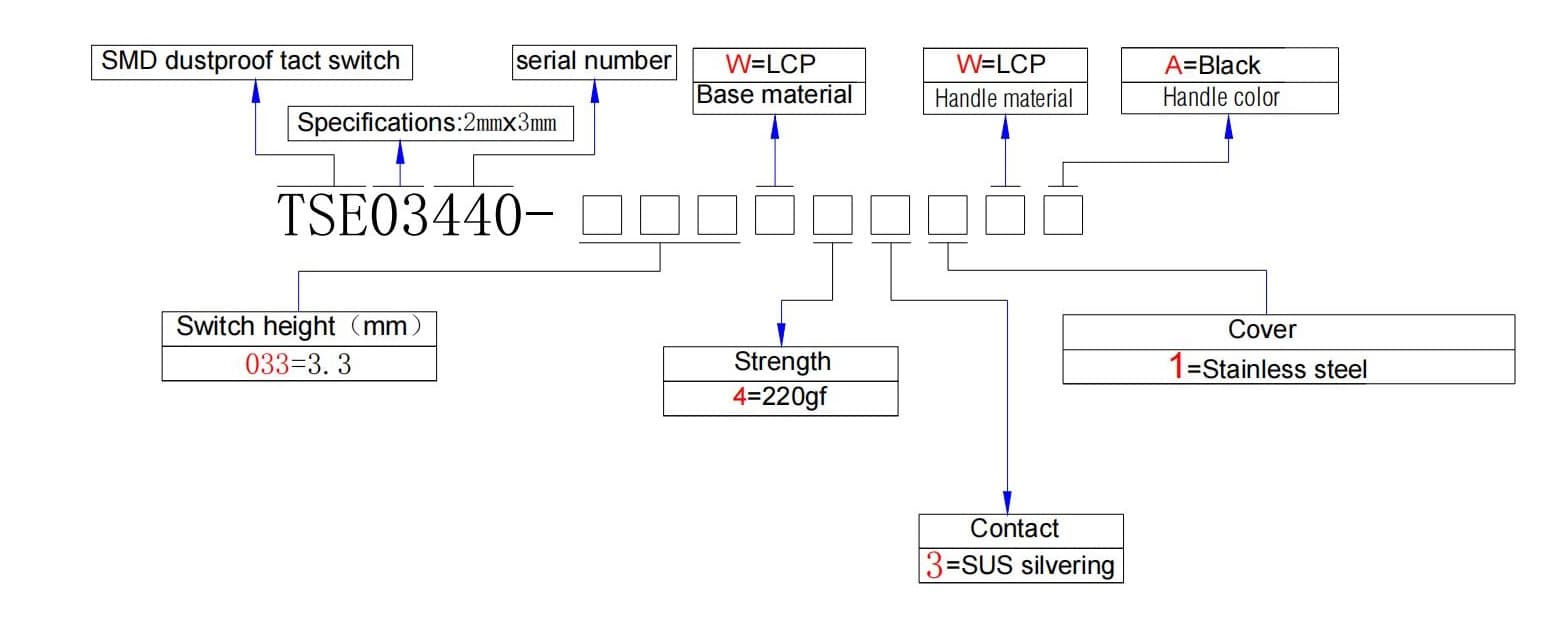

FIG. 2
기술 자료
FIG. 3
